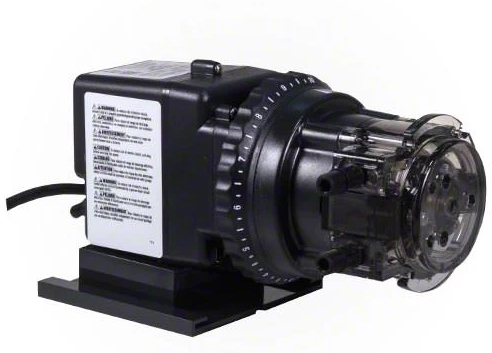

Stenner Peristaltic Commercial Chemical Feeder #5 Tube 120V (26 RPM) Pool Pump - 45MJL5A1STAA

Product Description

The Stenner Peristaltic Commercial Chemical Feeder #5 Tube 120V (26 RPM) Pool Pump 45MJL5A1STAA with Adj Rate 50GPD are proven performers for a wide range of applications that demand dependability and accuracy. Stenner manufactured the first high-pressure peristaltic metering pump that could operate reliably and consistently against pressure of up to 100 PSI. Stenner’s practical modular design saves valuable servicing time. All major feeder components are secured by stainless steel locking rivets allowing the units to be disassembled quickly without tools. This also makes adding capacity a snap. Stenner’s patented control mechanism allows the pump’s output to be scaled from 5% to 100% with the simple turn of a dial. Stenner feeders create a peristaltic flow with rotating rollers that compress and dilate the pumping tube. Chemicals are metered without exposure to air or to moving mechanical parts.

Application:

• Swimming Pools

Features:

• Will not clog from dirt and minor debris
• Check valves not required under 25 PSI (1.72 bar)
• Vertical or horizontal mount
• Completely self-priming, can operate dry

Specifications:

• Brand: Stenner Pumps
• Item: Adjustable Chemical Injection Pump
• Type: Single Head
• Series: Classic 45
• Model Number: 45M5
• Application: For water conditioning, animal health, industrial process, water and wastewater, cooling towers, legionella prevention in cooling towers, sprinkler head cleaning in irrigation and horticulture and plating bath treatment in the metal finishing industry
• HP: 1/30 Horsepower
• Amperage Rating: 1.7 A
• Voltage Rating: 120 V
• Pressure Rating: 0-25 psi
• Motor RPM: 26
• Cord Type: SJTOW, NEMA 5/15
• Dimension: 10.6 Inch L x 5.3 Inch W x 6 Inch H
• Flow Rate: 2.5 - 50 gpd
• Frequency Rating: 60 Hz
• Housing Material: Polycarbonate
• Maximum Suction Lift: 25 ft Vertical Lift
• Operating Temperature: 125 deg F
• Phase: 1-Phase
• Standards Approvals: UL Listed, CSA Certified, WQA Certified according to ANSI/NSF 61, Conforms to ANSI/NSF 50
• Suction Size: 1/4 Inch
• Includes: Accessory Kit
