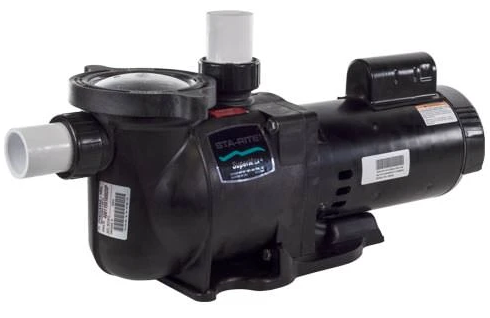

Sta-Rite SuperMax 1 HP EE Single-Speed Pump - PHK2E6E-102L

by Pentair
in stock, ready to be shipped
Save 26% Save 26%
Original price $569.99
Original price $569.99 - Original price $569.99
Original price $569.99
Current price $423.90
$423.90 - $423.90
Current price $423.90

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

The Sta-Rite SuperMax 1 Horsepower Energy Efficient 1-Speed Pump PHK2E6E-102L is designed to deliver commercial-grade strength to your residential swimming pool. Its strong economical performance provides pool owners with quality and value, while maintaining exceptionally quiet operation. The Sta-Rite SuperMax pump is a direct replacement for Hayward's Super Pump. All of the union fittings are included, and the pump features easy drop-in replacement.


    • SuperMax by Sta-Rite is a direct replacement for the Hayward Super Pump
    • Single and 2-speed models ranging from 1/2 to 2-1/2 hp
    • Cam and Ramp lid locks and unlocks with a simple quarter turn
    • Exterior thermoplastic resin withstands temperature extremes and delivers long life
    • Includes unionized fittings with 1.5" internal slip and 2" external slip
    • Manufactured out of a thermoplastic resin that can withstand extreme temperatures
    • Engineered for strong performance, and a long life
    • The simple cam and ramp lid locks and unlocks with a quarter turn
    • Easy installation


    • Brand: Pentair
    • Sub Brand: SuperMax
    • Model Number: N1-1AE-HP
    • Item: High-Performance Pump
    • Type: Energy Efficient
    • HP: 1 Horsepower
    • Number of Speed: 1-Speed
    • Curve Key: G
    • Full Load Amps: 12.8/7 - 6.4 A
    • Height: 10.65 Inch
    • Port Size: 1-1/2" x 1-1/2" NPT
    • Service Factor: 1.25
    • SF HP: 1.25
    • Standards Approvals: NSF Listed NSF Standard 50 For Self-Priming Centrifugal Pumps, UL Listed U.S. Standards UL1081, Canadian Standards CAN/CSA C22.2 No. 108-01, UL-C Certified
    • Voltage Rating: 115/208-230 V
