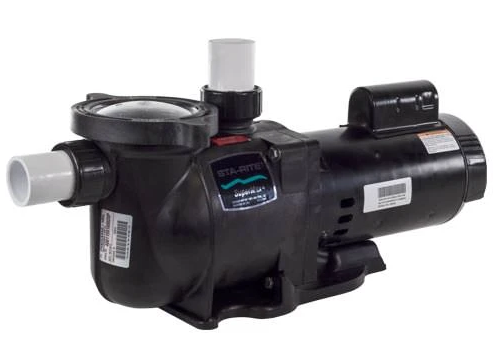

Sta-Rite SuperMax 1.5 HP EE 2-Speed Pool Pump - PHK2RAY6F-103L

Product Description

The Sta-Rite SuperMax Pool 1 1/2 Horsepower Energy Efficient Dual-Speed Pool Pump PHK2RAY6F-103L is designed to deliver commercial grade strength to your residential swimming pool. Its strong economical performance provides pool owners with quality and value while maintaining exceptionally quiet operation. The Sta-Rite SuperMax pump is a direct replacement for Hayward's Super Pump. All of the union fittings are included and the pump features easy drop-in replacement.

Features:

• SuperMax by Sta-Rite is a direct replacement for the Hayward Super Pump
• Includes unionized fittings with 1.5" internal slip and 2" external slip
• Manufactured out of a thermoplastic resin that can withstand extreme temperatures
• Engineered for strong performance, and a long life
• The simple cam and ramp lid locks and unlocks with a quarter turn
• Easy installation
• Single and 2-speed models ranging from 1/2 to 2-1/2 hp
• Exterior thermoplastic resin withstands temperature extremes and delivers long life

Specifications:

• Brand: Pentair
• Item: High Performance Pump
• Type: Energy Efficient, Up Rated, High Head
• Sub Brand: SuperMax
• Model Number: N2-1-1/2A-HP
• HP: 1-1/2 Horsepower
• Number of Speed: 2-Speed
• RPM: 3450
• Curve Key: C, H
• Full Load Amps: 7.8/3 A
• Height: 10.65 Inch
• Port Size: 1-1/2 Inch x 1-1/2 Inch NPT
• Service Factor: 1.1
• SFHP: 1.65
• Standards Approvals: NSF Listed NSF Standard 50 , UL Certified U.S. Standards UL1081 Canadian Standards CAN/CSA C22.2 No. 108-01, UL-C Listed, Energy Star Certified, APSP, ANSI/APSP/ICC-15 and California Title 20
• Voltage Rating: 230 V
