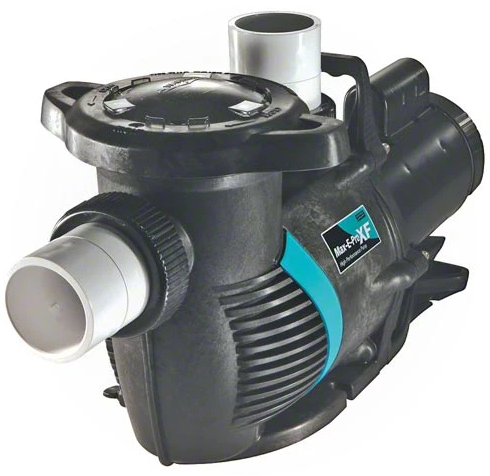

Sta-Rite Max-E-Pro XF 2 HP Pool Pump - 023009

by Pentair
SKU 023009
in stock, ready to be shipped
Save 25% Save 25%
Original price $1,039.99
Original price $1,039.99 - Original price $1,039.99
Original price $1,039.99
Current price $781.20
$781.20 - $781.20
Current price $781.20

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

The Sta-Rite Max-E-Pro XF 2 Horsepower Pool Pump 023009 is the most powerful efficient pump in Sta-Rite Max E Pro line. This high performance pump was engineered and manufactured using the most advanced computer-aided design making it the ideal choice for your residential pool or commercial pool. Created to work with multiple water features such as slides and waterfalls, the Sta-Rite Max-E-Pro XF pump offers increased efficiency through the advanced impeller design. In addition the unique hydraulic isolator separates the priming water from the pumping water resulting in a smoother flow, faster priming, and higher efficiency.


    • Motor includes dual compartments for simple wiring and installation
    • Union connectors are designed to fit 2.5" or 3" plumbing
    • The oxidation-resistant diamond seal provides a tighter seal and greater durability
    • Engineered with easily removable lock rings
    • Designed for simple drop-in replacement of the original Max-E-Pro
    • Hydraulic isolator separates priming water from pumping water for faster priming and more turbulence-free flow for increased efficiency
    • Dual-compartment motor for simplified field wiring
    • Diamond seals made of oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal
    • Extra-large, robust basket with smooth surface for easy debris removal
    • Drop-in replacement for original Max-E-Pro and optional riser plate enable easy Challenger replacement
    • Easy-carry handle; easily removable, ergonomic lock ring and see-through lid for easy basket inspection


    • Brand: Pentair
    • Sub Brand: Max-E-ProXF
    • Item: High Performance Pump
    • Type: Energy Efficient, Full Rated
    • Model Number: XPE-8
    • HP: 2 Horsepower
    • Number of Speed: 1-Speed
    • Curve Key: D
    • Full Load Amps: 11 - 10.2 A
    • Height: 14.1 Inch
    • Length: 27.42 Inch
    • Port Size: 2-1/2" x 2-1/2" NPT or 3-Inch x 3-Inch NPT
    • Service Factor: 1.3
    • SFHP: 2.6
    • Standards Approvals: NSF Listed NSF Standard 50 For Self-Priming Centrifugal Pumps, cULus Listed, CSA-C Certified, US Certified U.S. Standards UL1081, Canadian Standards CAN/CSA C22.2 No. 108-01
    • Voltage Rating: 208/230 V
