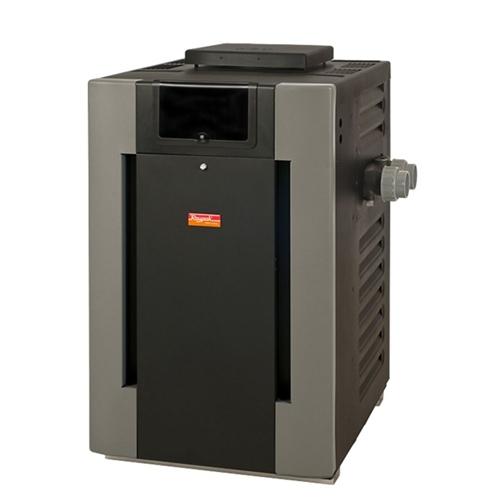

Raypak Digital 266K BTU Propane Pool Heater - 009975

by RayPak
SKU 009975
Availability:
in stock, ready to be shipped
Save 20% Save 20%
Original price $2,829.99
Original price $2,829.99 - Original price $2,829.99
Original price $2,829.99
Current price $2,277.00
$2,277.00 - $2,277.00
Current price $2,277.00

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

The Raypak gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service. Its wind-resistance design eliminates the need for fans to combat drafting problems. Polymer headers prevent rust stains from harming your pool's surface, providing you with years of trouble-free swimming pleasure. This gas pool heater also features an all-copper-fin-tube heat exchanger, stainless steel tube sheet, and 2" CPVC water connections. The Unitherm Governor helps reduce condensation from low inlet water temperatures and automatically regulates the water flow to help keep the water temperature in the heat exchanger about 105ᵒF. This Raypak gas heater is equipped with an automatic bypass built into the heater, making it capable of handling water flow at a rate up to 125 gpm. The burner tray is built to last and its innovative design allows for the easy removal of the tray and burners for servicing. A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater will not retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks. Rheem heaters are energy-smart and consistently achieve the highest efficiency ratings. P-M266A-EP-C.

Features:

  • PolyTuf Textured Powder Coating - The gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solvent-borne and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service
  • Fire Tile - A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks
  • Fuel-Efficient - Energy-smart heaters consistently achieve the highest efficiency ratings. They meet or exceed all federal and state standards
  • Microprocessor-Controlled Thermostat - The Digital gas heater features a microprocessor-based control center. This control allows you to set your pool or spa temperature precisely at your favorite setting just by pressing the up or down temperature control buttons
  • Self-Diagnostic - On-board diagnostic controls let the user and the service professional know what is going on with the heater at all times. In the event that you would ever have a problem with the heater, the digital display will indicate the source
  • Remote Compatible - Compatible with most major pool control and remote systems on the market today. Any two-wire or three-wire remote can connect to the heater and be integrated into the pool control system of your choice
  • Electronic Ignition - Digital heaters come standard with intermittent spark ignition pilot safety controls. What this means is that the pilot only comes on when there is a call for heat. This provides an energy-efficient way to control your heater's gas usage by eliminating the need for a continuous pilot
  • Wind-Resistant Design - No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc
  • Polymer Headers - Prevent rust stains from harming your pool’s surface, giving you years of trouble-free swimming pleasure
  • All-Copper-Fin-Tube Heat Exchanger - The fin tubes of the heat exchanger are each made from a single piece of extRuudd copper. This integral-fin design allows maximum heat transfer to be attained and maintained
  • Stainless Steel Tube Sheet - Stainless steel tube sheets are used on the gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free
  • CPVC 2 Inch Water Connections - Standard is a set of 2 Inch slip-fit CPVC water connections to make your installation secure and effortless
  • Condensation Protection - The Unitherm Governor helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105 deg F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life
  • High Flow Rates - The gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 gpm
  • Burner Tray - Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing

Specifications:

  • Brand: Raypak
  • Item: Pool/Spa Heater
  • BTUH Input: 266,000
  • Model Number: P-M266A-EP-C #57
  • Gas Type: Liquid Propane
  • Gas Connection: 3/4 Inch NPT
  • BurnerOrificeSize    #57
  • Water Connection: 2-Inch NPT
  • Cabinet Depth: 28 Inches
  • Cabinet Height: 38 Inches
  • Cabinet Width: 23 Inches
  • Control Type: Digital Electronic
  • Elevation: 0 - 2000 ft
  • Flow Rate: 125 gpm
  • Flue Diameter: 7-Inch
  • Frequency Rating: 60 Hz
  • Headers: Polymer
  • High Altitude Model: No
  • Housing Finish: PolyTuf Powder Coat
  • Indoor Draft hood: 62-Inch
  • Minimum J: 11-Inch
  • Phase: 1-Phase
  • Stackless Outdoor Top: 40 Inches
  • Standards Approvals: ASME Certified, ANSI Z21.56/CSA 4.7
  • Tubing Material: Copper
  • Voltage Rating: 115/230 V
