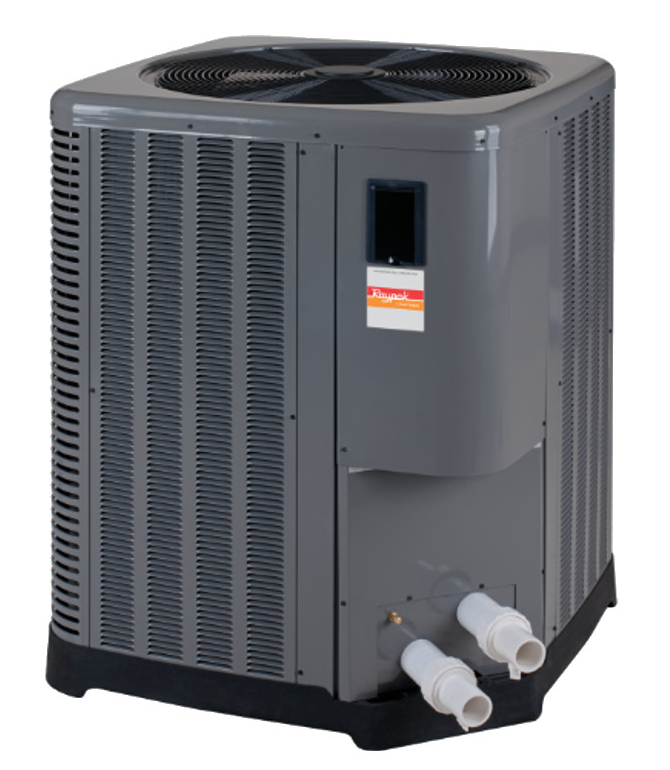

RayPak 119K BTU Pool Heat Pump - R6450TI-E (016015) is a new stylish platform that provides increased performance and easier maintenance accessibility than previous platform! AHRI certified and listed, these units are ideal for any single family pool installation. the units are built with titanium heat exchanger a heavy duty composite base, improved fan design, and digital controls backed up by a new circuit board whit increased capabilities. Plus, the new Heat Pump Platform cabinet allows more testing from the front panel while presenting a striking appearance that improves any equipment pad.
- Exclusive DuraSteel™ Powder-Coated Cabinet
Same rugged steel construction used by all the major air conditioner manufacturers. Fully louvered steel jacket protects the evaporation coil from storm debris, hail, and harsh weather. Not to mention the winning goal in a back yard soccer match. A plastic cabinet is no match for the all steel Raypak cabinet.
- 3 Blade Swept Wing Fan
Precision engineered and tuned for our heat pump. This means more air over the coil which translates to greater efficiency all while being whisper quiet!
- Extremely Tough Composite Base
Rustproof and ultrasound deading base material keeps your heat pump up and running for years while holding sound levels to an absolute minimum.
- Scroll Compressor
Scroll compressors are quiet and efficient compared to piston type compressors. They provide higher efficiency, lower sound levels, superior durability, and unsurpassed reliability. The unique design of a scroll compressor actually wears in overtime, not out!
Titanium Heat Exchanger
- Spiral Titanium Tube
The spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
- Internal Automatic Water Bypass
- Plumbing Connections Off-set 2” PVC union connections
Digital Controls - Basic Functions
- Pool/Spa Control
Your digital heat pump pool heater can be set to have a different target temperature for your pool and spa. This allows you to dial in just the right spa temperature and never have to adjust it again. The pool can be set to a lower, more energy saving temperature.
- Remote Compatible
The digital heat pump pool heater can be easily controlled by most two-wire and three-wire remote systems. The digital display will flash “Remote” to let you know that it is under control of a third party automation system. Simply press the up and down arrows for 5 seconds to release the control from the remote mode and regain local control.
- On Board Diagnostics
Tells you, the homeowner if there is a problem. Provides the service technician with detailed diagnostic information in real english.
Digital Control - Built-in Mini Automation
- Solar Priority Control
Allows solar to be the primary heat source and your heat pump as a backup booster.
- Heat Pump Priority Gas Heater Back Up Control
Heat pump is the primary source for heat with gas as a booster when needed.
- Multi Unit Control
Stages heaters ability to come on by delaying the start.
- 3-Way Valve Control
Control and program 3-way valves to work with pool and spa mode on digital control. No external parts to buy.
- Pump Control and Time Clock
- BTU: 119,000 BTU
- Compressor: Scroll
- Controller: Digital
- Coefficient of Performance: 6.2
- kW: 5.5 kW
- Volts: 208-230
- Hz: 60 Hz
- Phase: Single
- Minimum Circuit Ampacity: 42
- Recommended Breaker Size: 60
- Min Flow Rate: 15 GPM
- Max Flow Rate: 60 GPM
- Weight: 310 lbs.
- Refrigerant: R410A
- Heat Exchanger: Titanium
