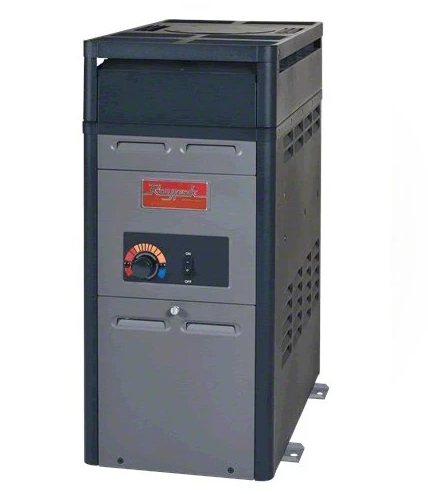

The Raypak 106A heater is an electronic ignition heater with analog control designed for hot tubs and above-ground pools. By adding a pool heater to your above ground pool you can extend your swim season by being able to open your pool earlier and keep it open later into the year.

Specifications:

• Operates on Natural Gas
• Requires 110 Volt or 240 Volt Electrical Supply
• 6" Indoor Stack for ventilation when installed indoors
• 105,000 BTU Input
• For use in elevations of 0 to 4999 feet (be sure to verify the elevation where this heater will be installed. It will not operate properly outside of the specified elevation).

Features:

• Polyester-Coated, non-corrosive external cabinet for added durability.
• Doesn't require fans to combat drafting problems.
• Delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
• Polymer headers prevent rust stains on your pool or spa surface.
• All-Copper-Fin-Tube Heat Exchanger. Made from a single piece of extruded copper.
• Easy to use analog control dial.
• Electronic ignition only generates a pilot when there is a call for heat.
• Heater includes a 3 foot long, 3 prong power cord for convenience. (can also be hard wired)
• 2" Plumbing with flange connections for a solid connection.
• Automatic water bypass to enable the heater to handle different Gallons Per Minute without having to adjust the flow rate manually.
• Ceramic fiber combustion box keeps the heat in and the outside panels of the heater cool.
• Won't retain residual heat after the heater is turned off.
• Meets or exceeds all federal and state energy efficiency standards
