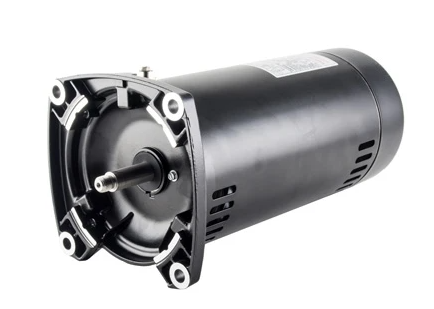

AO Smith Century Centurion Series 3/4 HP 48Y Frame Motor - USQ1072
AO Smith Century Centurion Series .75 Horsepower Square Flange 48Y Frame Motor - USQ1072 combine the proven performance of the Century Centurion 56 frame platform with the next generation of features for increased reliability, added performance, premium efficiency and serviceability.
- Centurion Series Motor
- No-adjust start switch that is rated for over one million cycles for motor longevity
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
- Heavy duty shaft made from 303 grade stainless steel helps prevent corrosion
- EZ wrench access that doesn't require the removal of the wiring compartment canopy
- Angled terminal makes wiring connections a breeze
- Patented voltage change dial for easy voltage selection
- Patented bonding lug for easy ground connections
- Patented bearing lock clip for for assured bearing retention
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
- Horsepower: 3/4
- Service Factor: 1.27
- Total Horsepower: 0.95
- Volts: 115/230
- Amps: 13.4/6.7
- RPM: 3450
- Frame: 48Y
- Flange: Square
- Shaft: Threaded
- Series: Centurion
Compatible for use with the following pumps:
- Sta-Rite Max-E-Glas
- Max-E-Glas II
- Dura-Glas II
- Dyna-Max Pentair Whisperflow
- Anthony AR2 Series
