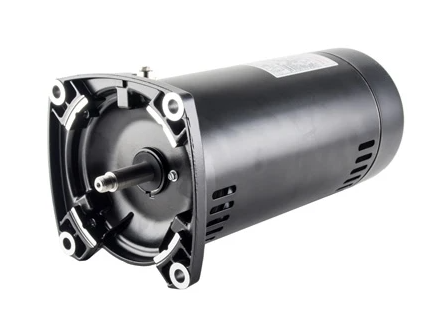

AO Smith Century Centurion Series 1 HP Square Flange 48Y Frame Motor - USQ1102 combines the proven performance of the Century Centurion 56 frame platform with the next generation of features for increased reliability, added performance, premium efficiency, and serviceability.
- Centurion Series Motor.
- No-adjust start switch that is rated for over one million cycles for motor longevity.
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor.
- Heavy duty shaft made from 303 grade stainless steel helps prevent corrosion.
- EZ wrench access that doesn't require the removal of the wiring compartment canopy.
- Angled terminal makes wiring connections a breeze.
- Patented voltage change dial for easy voltage selection.
- Patented bonding lug for easy ground connections.
- Patented bearing lock clip for for assured bearing retention.
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada.
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage.
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion.
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems.
- Horsepower: 1
- Service Factor: 1.25
- Total Horsepower: 1.25
- Volts: 115/230
- Amps: 15.3/7.6
- RPM: 3450
- Frame: 48Y
- Flange: Square
- Shaft: Threaded
- Series: Centurion
Compatible for use with the following pumps:
- Sta-Rite Max-E-Glas
- Max-E-Glas II
- Dura-Glas II
- Dyna-Max Pentair Whisperflow
- Anthony AR2 Series
