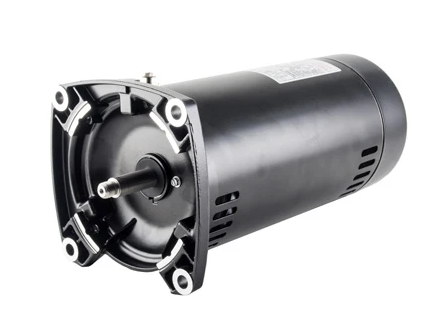

AO Smith Century Centurion Series 1/2 HP 48Y Frame Motor - USQ1052

Product Description

AO Smith Century Centurion Series 1/2 HP 48Y Frame Motor - USQ1052 combine the proven performance of the Century Centurion 56 frame platform with the next generation of features for increased reliability, added performance, premium efficiency and serviceability.

Features:

• Centurion Series Motor
• No-adjust start switch that is rated for over one million cycles for motor longevity
• Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
• Heavy duty shaft made from 303 grade stainless steel helps prevent corrosion
• EZ wrench access that doesn't require the removal of the wiring compartment canopy
• Angled terminal makes wiring connections a breeze
• Patented voltage change dial for easy voltage selection
• Patented bonding lug for easy ground connections
• Patented bearing lock clip for for assured bearing retention
• All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
• Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
• Rugged motor enclosure system for enhanced durability and premium protection against corrosion
• A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems

Specifications:

• Horsepower: 1/2
• Service Factor: 1.3
• Total Horsepower: 0.65
• Volts: 115/230
• Amps: 9.9/5.0
• RPM: 3450
• Frame: 48Y
• Flange: Square
• Shaft: Threaded
• Series: Centurion
• Up-Rated

Compatible for use with the following pumps:

• Sta-Rite Max-E-Glas
• Max-E-Glas II
• Dura-Glas
• Dura-Glas II
• Dyna-Glas
• Dyna-Max Pentair Whisperflow
• Pinnacle
• Anthony AR2 Series
