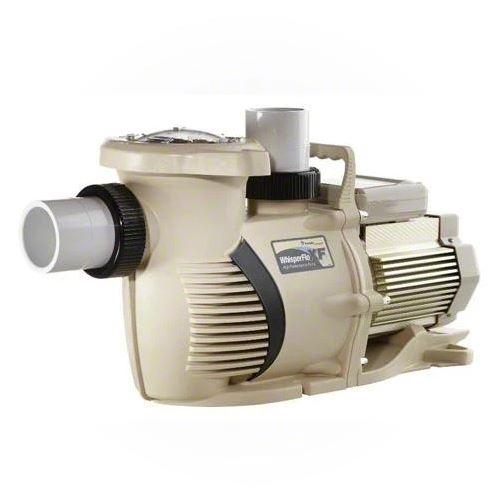

The Pentair WhisperFloXF Three Horsepower Three-Phase Pump 022018 with TEFC Super-Duty Motor is a true commercial-duty swimming pool pump. The TEFC (Totally Enclosed Fan Cooled) WFXF SD motor is much more robust and corrosion proof than standard ODP (Open Drip Proof) motors. This commercial-duty motor construction does not allow ambient air to enter the motor, preventing corrosion from the inside out. The aluminum motor also has an anodized surface finish for increased corrosion-resistance and greatly improved service life. The motor design features heavy-duty sealed bearings and an ultra-strong aluminum fan for superior cooling, along with Class F insulation for compatibility with Pentair Aquatic Systems' Acu-Drive Variable Frequency Drives. Featuring ratings offering flow capabilities in excess of 200 gpm, WhisperFloXF 3-phase TEFC Super-Duty pool pump is an ideal choice for many continuous-duty commercial installations, especially those prone to coastal elements, harsh environments, and "up-time critical" applications.
Calling on the latest computer-aided engineering tools, Pentair developed a proprietary design that was completely rethought from the inside out. They achieved a level of streamlined fluid flow and precision manufacturing that simply wasn't possible in the past. And when their work was done, they had created the all-new WhisperFloXF high performance pump—the most energy-efficient pump ever offered in its class.
The WhisperFloXF offers outstanding performance from both a maximum-flow and mean-flow perspective, it's an ideal choice for commercial pools, as well as residential pools with waterfalls, slides and other water features.
Features:
- 3 Horsepower Three Phase Premium Efficiency with "Super-Duty" TEFC Motor
- Single Speed / 208-230-460V
- New union connectors included—connects directly to 2.5" or 3" plumbing.
- Drop-in replacement for all WhisperFlo models. Simple replacement for Challenger® pumps.
- See-through lid makes basket inspection fast and easy.
- Extra-large basket needs less emptying, smooth surface allows easy debris removal.
- Proprietary hydraulic isolator satisfies the competing priorities of smooth priming and optimally efficient operation.
- User-friendly Cam and Ramp lid removes easily and locks in place quickly with a quarter-turn.
- External port threads and included tool-free unions require only hand tightening for a perfect fit.
- Easy-carry handle is a back-saver at the equipment pad.
- New upgraded dual-compartment motor allows simpler electrical installation.
- Diamond seals made of oxidation-resistant EPDM rubber for longer-lasting, leak-resistant performance.
