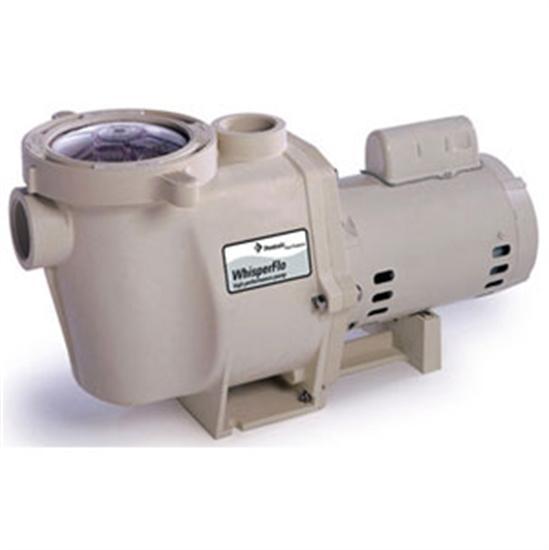

Pentair WhisperFlo Pump WFDS-3 3/4 HP 2SPD - 012530

by Pentair
SKU PF012530
Availability:
in stock, ready to be shipped
Save 36% Save 36%
Original price $1,039.99
Original price $1,039.99 - Original price $1,039.99
Original price $1,039.99
Current price $666.00
$666.00 - $666.00
Current price $666.00

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

Pentair WhisperFlo Pump WFDS-3 3/4 Horsepower 2SPD is design to moves water more efficiently and more quietly than competitive pumps. Under typical operating conditions, WhisperFlo® High Performance Pumps offers the highest water flow of any high performance single- or two-speed pump–yet with the lowest electrical consumption. Features : 40% glass-filled thermoplastic with the Cam & Ramp "see thru" lid design, self-priming, high flow with patented Funnel-Flo diffusers and 2 in. suction and discharge ports. Motor features threaded shaft and durable commercial duty 56 frame motor with NEMA square flange.

Features:

  • Oversized strainer basket and volute - industry standard in pool pumps
  • Standard and energy-efficient square flange motors available
  • Lower horse power deliver higher performance than industry standard
  • Compatible with all cleaning systems, various filters and jet action spas
  • Heavy-duty/durable construction is designed for long life
  • Designed for residential and commercial applications
  • New motor increases life, energy, efficiency, ease of installation and better cooling for long service life

Specifications:

  • Curve Key : A, F
  • Full Load Amps : 14.6/4.7 A
  • Height : 12.44 Inch
  • HP : 3/4
  • Item : High Performance Pump
  • Length : 24.41 Inch
  • Number of Speed : 2-Speed
  • Port Size : 2 Inch x 2 Inch NPT
  • RPM : 3450
  • Service Factor : 1.67
  • SFHP : 1.25
  • Standards Approvals : NSF Listed , NSF Standard 50, CSA Certified, UL Listed, UL1081, CAN/CSA C22.2 No. 108-01, APSP, ANSI/APSP/ICC-15 and California Title 20, Energy Star Certified
  • Type : Energy Efficient, Full Rated
  • Voltage Rating : 115 V
  • Width : 10.8 Inch
