Description

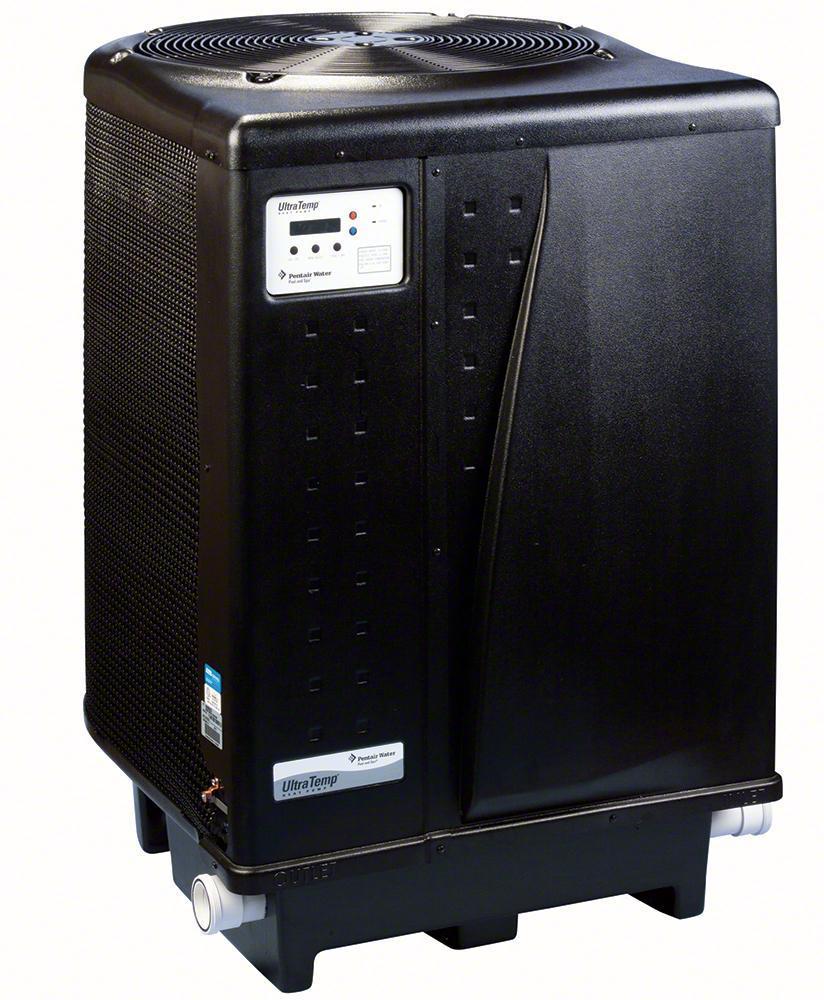

Pentair UltraTemp 90 Pool Heat Pump 90,000 BTU Black Color uses an ozone-friendly refrigerant and has a 100% pure titanium heat exchanger that assures corrosion-free performance for extra-long life.
Features:
- 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
- Highest efficiency available, meets or exceeds existing codes and standards
- BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
- LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
- AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
- Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
- Compatible with all automated control packages
- Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
- Emerson Copeland scroll compressor on 60 Hz, 1-phase models
- ETL listed for safe operation
- Thermostatic expansion valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
Specifications:
- Cabinet Depth : 33.8 Inch
- Cabinet Height : 33-1/2 Inch
- Cabinet Width : 38.9 Inch
- Coefficient of Performance : 5.7
- Compressor Type : Scroll
- Control Type : Digital
- Electrical Input : 4.6 kW
- Flow Rate : 30 - 120 gpm
- Frequency Rating : 60 Hz
- Heat Exchanger : Titanium
- Heat Output BTUH : 90000
- Housing Finish : Black
- Housing Material : Plastic
- Maximum Breaker Size : 50 A
- Minimum Circuit Ampacity : 40 A
- Model Number : 90
- Phase : 1-Phase
- Refrigerant Model : R410A
- Standards Approvals : ETL Listed, AHRI Certified
- Voltage Rating : 230 V
- Water Connection : 2 Inch
