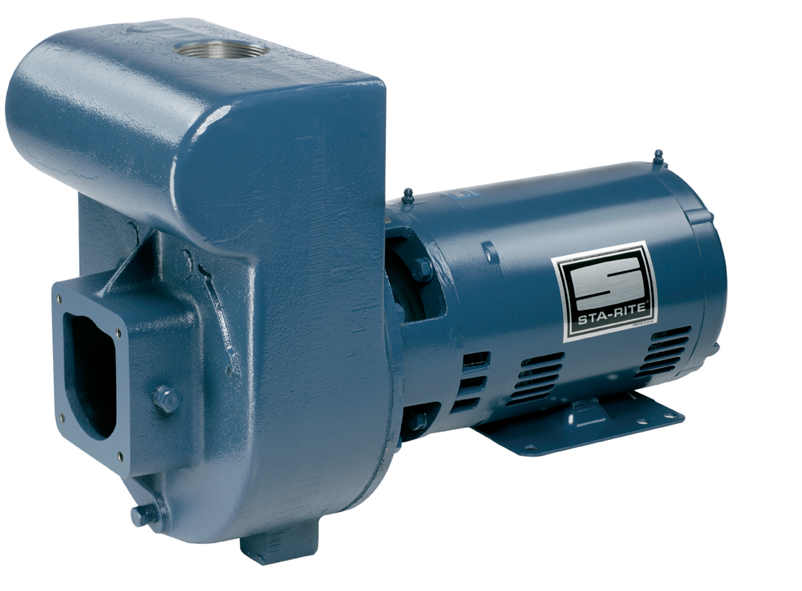

Pentair Medium Head Pump 5 Horsepower 1 PH 230V are especially designed for commercial and public swimming pools and spas, aquatic facilities, water parks and fountain applications where high performance and self-priming characteristics are desired. These centrifugal pumps are available in high head and medium head models with motors from 3-5 HP to provide a complete range of performance characteristics. Motors are open drip-proof, continuous duty rated at 3450 RPM.
Specifications:
- Amperage Rating : 22 A
- Curve Key : D
- Height : 13.37 Inch
- HP : 5
- Item : Centrifugal Commercial Pump
- Length : 22.12 Inch
- Material : Cast Iron
- Phase : 1-Phase
- Port Size : 2-1/2 Inch ANSI Flange
- Series : D Series
- Standards Approvals : NSF Listed NSF Standard 50 For Self-Priming Centrifugal Pumps
- Type : Self-Priming, Standard Efficiency, High Head
- Voltage Rating : 230 V
- Width : 9-1/2 Inch
