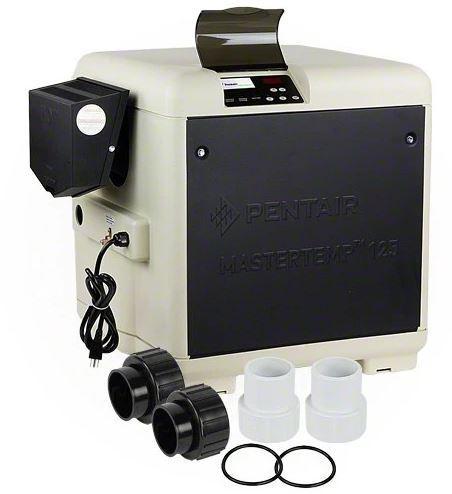

Pentair MasterTemp 125,000 BTU Propane Heater - 461061

Product Description

The Pentair MasterTemp 125,000 BTU Propane Heater 461061 is designed for smaller bodies of water such as above-ground pools up to 15,000 gallons of water. It comes with all of the great features found on larger in-ground pool heaters and has the highest efficiency of any heater in its class at 83%. The digital display is easy to use and has a information-rich display and control pad. The display can also be rotated to place it front and center for any installation orientation. This model includes a 110 Volt cord for easier installation for those that do not want to hard-wire the heater.

The MasterTemp heater is engineered for super-quiet operation and won't intrude on your poolside leisure time. A tough, rustproof composite exterior handles the heat and weathers the elements.

Safe operation is assured through a series of features, including; a water pressure switch that senses the pump is running to prevent overheating; high limit switches assure the heater turns off if water temperature exceeds factory set limits; manual gas shut-off when service is required; stack flue sensor also guards against overheating.

Compare energy efficiency ratings and you'll find MasterTemp heater at the top of the list. Comfort and economy can go together. With a hot surface ignition (no pilot light) and push-button, digital controls, MasterTemp is as easy to operate as your home heating system. Plus, user-friendly indicator lights make system operation and monitoring a snap.

Features:

• 125,000 BTU Rating
• Operates on Propane
• 1 1/2" Plumbing Intake and Discharge
• 83% Energy Efficiency Rating
• Intuitive and Easy-to-Use Display and Control Pad
• Certified for Low NOx emissions
• Housing that is Corrosion and UV-resistant
• 3/4" Gas Line up to 50 Feet from Source (not included)
• Includes a 110 Volt Cord for Easy Installation

Dimensions:

• 21" Wide x 20.85" Depth x 23" Height (overall Width including intake/discharge and side vent approx 29 1/2")

Specifications:

• Brand: Pentair
• Item: Heater with Cord
• Type: High-Performance
• BTUH Input: 125,000
• Gas Type: Liquid Propane
• Phase: 1-Phase
• Amperage Draw: 15 A
• Cabinet Depth: 29.43 Inch
• Cabinet Height: 23 Inch
• Cabinet Width: 21 Inch
• Control Type: Digital
• Flow Rate: 70 gpm
• Frequency Rating: 60 Hz
• Gas Connection: 3/4 Inch
• Standards Approvals: Eco-Select
• Sub Brand: MasterTemp 125
• Voltage Rating: 120/240 VAC
• Water Connection: 1-1/2 Inch
