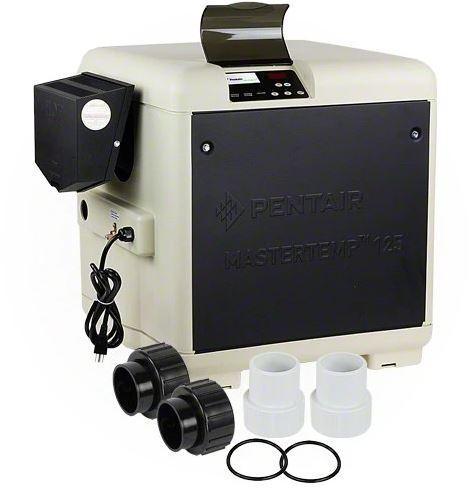

Pentair MasterTemp 125,000 BTU Heater - 461059

Product Description

Pentair MasterTemp 125,000 BTU Heater - 461059 is designed for smaller bodies of water such as above-ground pools up to 15,000 gallons of water.  It comes with all of the great features found on larger in-ground pool heaters and has the highest efficiency of any heater in its class at 83%.  The digital display is easy to use and has a information-rich display and control pad.  The display can also be rotated to place it front and center for any installation orientation.  This model includes a 110 Volt cord for easier installation for those that do not want to hard-wire the heater.

The MasterTemp heater is engineered for super-quiet operation and won’t intrude on your poolside leisure time.  A tough, rustproof composite exterior handles the heat and weathers the elements.

Safe operation is assured through a series of features, including; a water pressure switch that senses the pump is running to prevent overheating; high limit switches assure the heater turns off if water temperature exceeds factory set limits; manual gas shut-off when service is required; stack flue sensor also guards against overheating.

Compare energy efficiency ratings and you’ll find MasterTemp heater at the top of the list.  Comfort and economy can go together.  With a hot surface ignition (no pilot light) and push-button, digital controls, MasterTemp is as easy to operate as your home heating system.  Plus, user-friendly indicator lights make system operation and monitoring a snap.

Features:

• High-performance, affordable heating with premium features.
• 82% energy efficiency is highest in its class.
• 1-1/2 Inch plumbing, ideal for smaller bodies of water up to 15,000 gal.
• Pre-mixed combustion technology for ultra-fast heat-up.
• Rotating digital display - the first in its price category - provides fast, easy access for programming and monitoring.
• Certified for low NOx emissions.
• Certified for outdoor and indoor - vented installations.

Specifications:

• Brand: Pentair
• Sub Brand: MasterTemp 125
• Item: Heater with Cord
• Cabinet Depth: 29.43 Inch
• Cabinet Height: 23 Inch
• Cabinet Width: 21 Inch
• Control Type: Digital
• Type: High Performance
• Amperage Draw: 15 A
• BTUH Input: 125000
• Flow Rate: 70 gpm
• Frequency Rating: 60 Hz
• Gas Connection: 3/4 Inch
• Gas Type: Natural Gas
• Phase: 1-Phase
• Standards Approvals: Eco-Select
• Voltage Rating: 120/240 VAC
• Water Connection: 1-1/2 Inch
