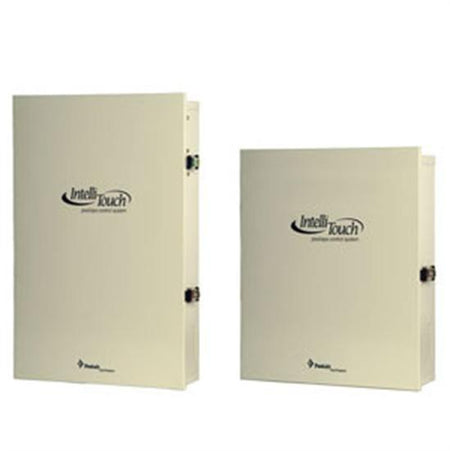

Pentair IntelliTouch Load Center Enclosure - Includes 5 Relays
An IntelliTouch control system takes the work and worry out of scheduling and operating pool and spa heating, filtration and cleaning cycles. It also gives you one-touch control over additional heaters, valves, pool lights, landscape lights, water features and more. At the same time, IntelliTouch makes sure all your equipment operates at peak efficiency for minimum energy usage and cost. It even helps protect your equipment investment. IntelliTouch senses conditions that could hamper operation and alerts you to these situations or takes automatic corrective action.
The capabilities of IntelliTouch are easily expanded as you continue to add features to your backyard retreat. Expansion kits add control over five or ten additional accessories. Up to three expansion kits can be combined to control up to 40 separate pieces of equipment.
Pentair IntelliTouch Load Center Enclosure includes a built-in sub panel (125 AMPS) capable of holding up to eight 1 inch breakers. Also includes five 25 AMP 3 HP relays, 110V/240V transformer with secondary side circuit protection. Multiple knockouts for ½ inch to 1-inch conduit are supplied as well a GFCI side knock out. The Load Center provides ample space for all high and low voltage wiring needs.
Application
Features:
- The power center is installed at your pool equipment pad, it contains all the electrical circuitry
- IntelliTouch is very simple to program and simple to use
- The capabilities of IntelliTouch are easily expanded
