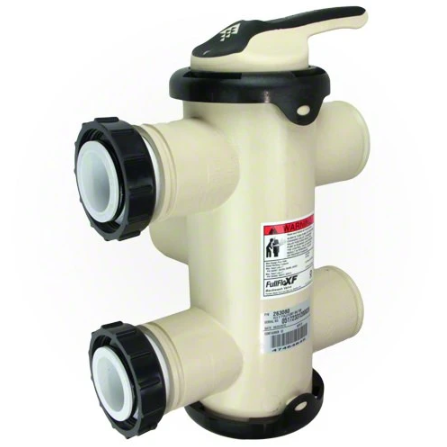

Pentair FullFloXF Backwash Valve - 262507 has near zero pressure loss across the valve which significantly reduces the amount of energy required by a filtration system and saves your customers money. Depending on your utility rates, this valve could save you hundreds of dollars per year when compared to a typical backwash valve. The FullFloXF Backwash Valve is Title 24-compliant for 2", 2-1/2" and 3" Plumbing.
Inlet port on top.
Molded in markings and text to show handle position and port labelling.
Special winterizing position.
Six-position, positive-lock operation.
Valve body constructed of high quality corrosion-resistant PVC.
Incredibly low pressure loss significantly reduces the amount of energy used.
Robust design assures years of trouble free operation.
Comfort grip over-molded large handle.
Full unrestricted straight through 2-1/2 Inch flow.
3 Inch outer diameter and 2-1/2 Inch inner diameter ports.
Removable end caps for servicing ease.
- Brand: Pentair
- Sub Brand: FullFloXF
- Item: Backwash Valve
- Size: 2 Inch, 2-1/2 Inch and 3 Inch
- Dimension: 12.175 Inch x 17.4 Inch x 8.1 Inch
- Type: High Performance
- For Use With: Sta-Rite S7MD60, S7MD72 System 3 and PLDE 36, PLDE48 System 2 Mod D.E. Filters
- Material: PVC
- Standards Approvals: NSF Listed, California Title 24
