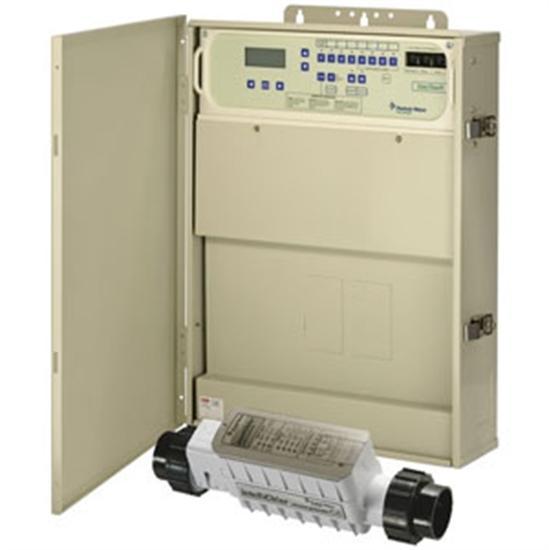

Pentair EasyTouch 4PSC-IC20 Single Body System with SCG Integration - 520592 allows full control of all pool/spa features including advanced features such as colored lighting and IntelliChlor chlorine generator support. Every EasyTouch system includes an easy to use control panel that is built into the outdoor enclosure. This control panel allows for full system setup, programmability, and everyday operation. Has built-in diagnostics that include automatic verification of the display, microprocessor, switches, indicators, relay outputs, valve outputs, sensor inputs, and communication ports as well as a diagnostic screen that reports failures for troubleshooting and repair purposes. Interfaces with the new IntelliChlor automatic chlorine generator. High Voltage Circuits--Filter + 3 and includes IC20 cell.
- UltraTemp heat pump integration.
- Includes 150 A breaker base with space for 10 1 Inch breakers.
- Eco select.
- Includes SCG integration and IC20 cell.
- Support for 2 VS or 2 VF pumps.
- Supports 8 feature circuits.
- MagicStream laminar support.
- IntelliChem controller support.
- IntelliBrite 5g pool and spa Light support.
- All functions controlled with easy, one-button access from the self-contained load center or optional controllers.
- No need to memorize operating sequences, open and close valves, or reset time clocks and thermostats.
- Built-in diagnostics include automatic verification of the display, microprocessor, switches, indicators, relay outputs, valve outputs, sensor inputs, and communication ports as well as a diagnostic screen that reports failures for troubleshooting and rep.
- Brand: Pentair
- Sub Brand: EasyTouch
- Item: Control System with IntelliChlor Transformer and Cell
- Type: Single Body
- Dimension: 26 Inch Height x 17 Inch Width x 5-1/4 Inch Depth
- For Use With: ScreenLogic 2 Interface Software to Allow Control From an Apple iPad, iPhone, iPod touch Mobile Digital Device or Android Device, PC or Mac Computer
- Includes: (4) Relays, (3) Valve Outputs, No Actuators, 8 Position Breaker Panel, Local Remote From Power Supply, Chlorine Generator, No Indoor Control, (2) Temperature Sensors
- Standards Approvals: UL Listed, cUL Listed
- Treatment Capacity: 20000 gal
