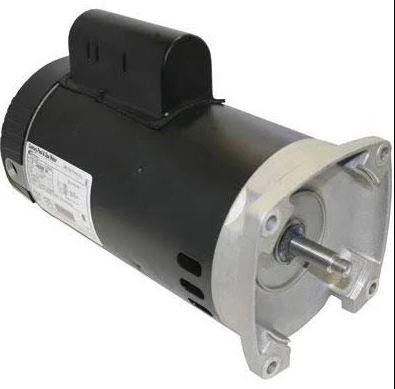

This Nidec 1.25THP 115/230V 48Y ODP SQFL Motor ASQ125 is built with high quality standards in mind. Dureable and efficient, it will provide the best performance of you needs.
Motor is found on many in ground pool pumps such as Sta-Rite Max-E Glas, Dura Glas, Dyna Glas. Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange. Century Equivalent USQ1102 Features: 1.25 HP 3450 RPM, 14.0/7.0 amps, 115/230V 60hz. Automatic Overload Protection - Service Factor 1.25 Non-Reversible - CCW Rotation facing the shaft Open Drip Proof - Ball Bearings 48Y Frame-Square Flange; 5/8" diameter threaded stainless steel shaft hardware.
Features:
- Enclosure Design: ODP
- Frame: 48
- Frequency Rating: 60 Hz
- HP Rating: 1.25 hp
- Item: Motor
- Mounting Type: Square Flange
- Number of Speed: 1
- Phase: 1
- Voltage Rating: 115/230 V
