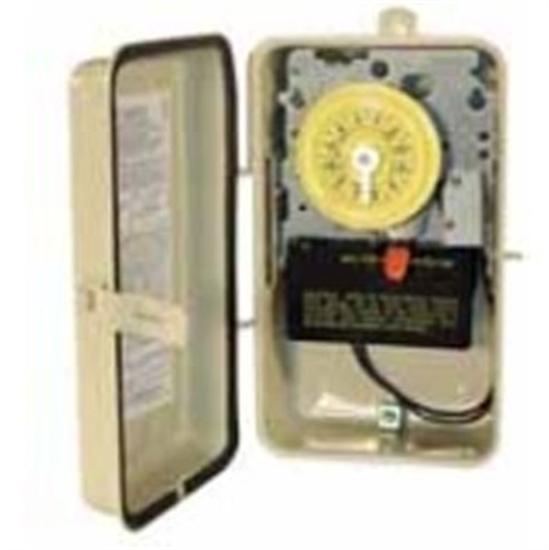

Intermatic T101R3 Timer Switch 110V - Metal Enclosure

»» Description:

Intermatic T101R3 Timer Switch 110V - Metal Enclosure

Intermatic's heavy duty Mechanical Time Switches are designed for industrial, commercial and residential applications and have the highest motorload ratings in the industry. This model provides up to 12 ON-OFF operations each day with minimum ON-OFF time of 1 hour. This model is also equipped with "ON" and "OFF" trippers and is available in a metal indoor-outdoor enclosure.

»» Application:

• Swimming pool equipment

»» Features:

• Product Specs: 125 Volt

• SPST Switch

• NEMA 3R Case - 9-3/8" (23.8 cm) high x 5-1/2" (14.0 cm) wide x 3-5/8" (9.2 cm) tall.

• Knockouts - Combination 1/2" - 3/4" nominal knockouts, one on the back and each side of case, two on bottom

• Switch Rating - 40 Amp resistive

• Shipping Weight - 3.75 lbs. (1.7 kg)

• Agency Approval - CSA/C-US
