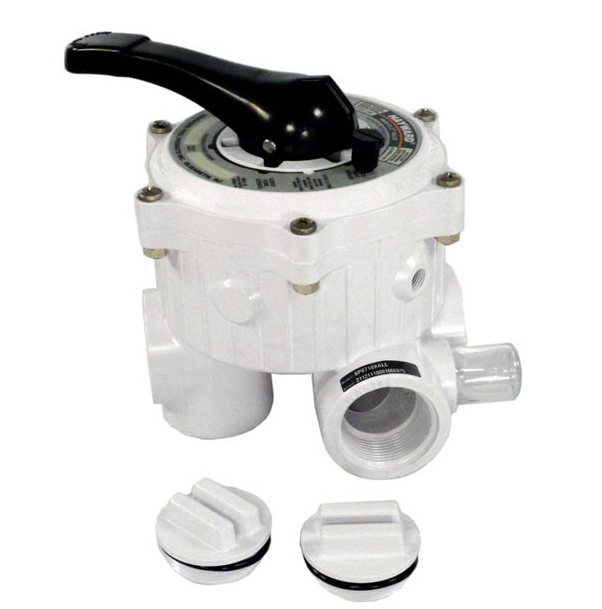

Hayward Vari-Flo Backwash Valve 1.5" FPT White it features an easy-to-use lever action handle that lets you "dial" up to seven valve/filter functions: filter, backwash, waste, rinse, closed, winter or recirculated. It is complete with an integral sight glass that lets you see when the backwashing cycle is completed.
Features:
- Reinforced thermoplastic material meets the demands of the toughest applications
- Hydro-engineered to provide superior flow at lower pressure drops, resulting in more efficient filtration at equivalent horsepower
- Rugged off-set ports for easy plumbing
- Ergonomically designed handle allows for simple dialing of the various valve positions
- Built-in sight glass for convenient backwash viewing
- Injection molded Noryl valve key assembly, with molded gasket for a continuously reliable seal
Specifications:
- Application : Six valve/filter functions: filter, backwash, waste, rinse, closed or recirculate
- Filter : Sand or DE
- Finish Color : White
- For Use With : Vertical grid DE and sand filters
- Material : Reinforced Thermoplastic
- Mount : Side
- Pipe Size : 1.5 Inch FIP
- Positions : 6
- Standards Approvals : NSF Listed
- Type : Filter Parts and Accessories
