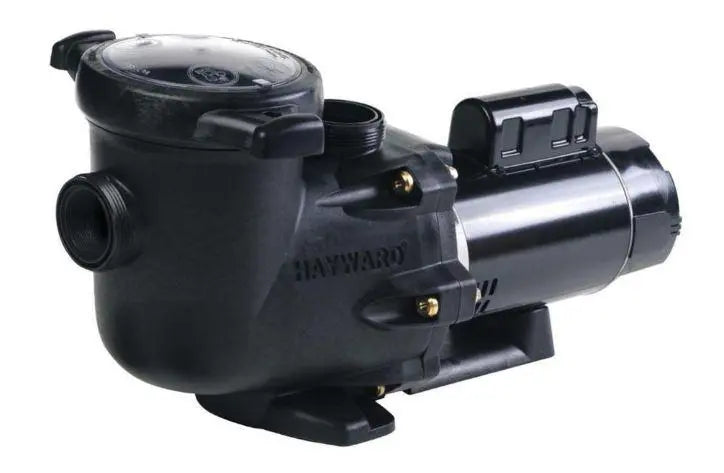

Hayward TriStar 1 1/2 Horsepower Max Rated Single Speed Pool Pump W3SP3210X15 (also known as SP3210X15) features heavy duty, high performance pump technology. The advanced fluid dynamic design optimizes the three essential pump elements to deliver superior flow, and energy efficiency creating a new benchmark in residential pool pumps. Hayward TriStar features the most energy-efficient hydraulics with a revolutionary motor-cooling design for an extended motor life. Its the first pump to feature a Tri-Lock cam and ramp strainer cover with a super sized, smooth, no-rib basket. It also features a dynamic airflow for a quieter, cooler operation and it seamlessly retrofits to almost any existing filtration system.
Features :
- Balanced, high-head impeller provides high-volume output to accommodate even the most demanding installations, including pool/spa combinations
- Superior hydraulic efficiency allows the pump to deliver the performance of larger, more expensive pumps
- Quick and easy installation and servicing with 2” x 2.5” union connections, providing optimum efficiency for medium to larger pools
- Easy-to-clean, no-rib basket
Specifications :
| Manufacturer |
Hayward |
| Brand |
TriStar® |
| Item |
Pool Pump |
| Voltage Rating |
115/230 V |
| Amperage Rating |
20 A |
| Service Factor |
1.10 |
| HP |
1.5 |
| Thrust Horsepower |
1.65 |
| Motor Speed |
1-Speed |
| Motor Rating |
Full-Rated |
| Connection Size |
2 Inch x 2-1/2 Inch |
| GPM of Water at 20F to fHead |
131 |
| GPM of Water at 30F to fHead |
122 |
| GPM of Water at 40F to fHead |
110 |
| GPM of Water at 50F to fHead |
97 |
| Dimension A |
13-7/8 Inch |
