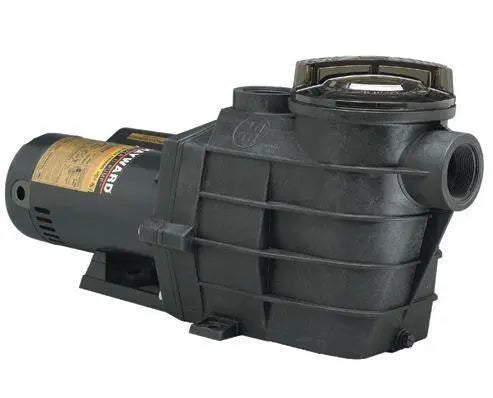

Hayward Super II 3.0 Horsepower 1 Speed Pool Pump W3SP3020X252AZ(also known as SP3025X30AZ) is designed for even the most demanding installations, Super II simply out-performs all others. Efficient, full-flow hydraulics produce more flow at equivalent horsepower, resulting in lower operating costs. Choose the Hayward Super II Pump, when you want the very best.
Applications :
- In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
- In-ground spas or in-ground pool/spa combinations
- Fountains
Features :
- All components molded of corrosion-proof PermaGlass XL for extra durability and long life
- Self-priming (suction lift up to 8' above water level)
- Easy thread design makes strainer cover removal easy
- Lexan see-thru strainer cover lets you see when basket needs cleaning
- 155 cubic-inch basket extends the time between cleanings
- Heavy-duty, high-performance motor for quieter, cooler operation
- Uni-bracket mounting base provides stable, stress-free support, plus versatility for any installation requirement and adapts 48 and 56 frame motors
- Service-ease design gives simple access to all internal parts
- Includes Pump Lid removal tool
Product Specifications :
| Manufacturer |
Hayward |
| Brand |
Super II™ |
| Item |
Pool Pump |
| Voltage Rating |
230 V |
| Amperage Rating |
20 A |
| Service Factor |
1.15 |
| HP |
3 |
| Thrust Horsepower |
3.45 |
| Motor Speed |
1-Speed |
| Motor Rating |
Max-Rated |
| Connection Size |
2 Inch |
| GPM of Water at 40F to fHead |
159 |
| GPM of Water at 50F to fHead |
148 |
| Dimension A |
17-3/4 Inch |
