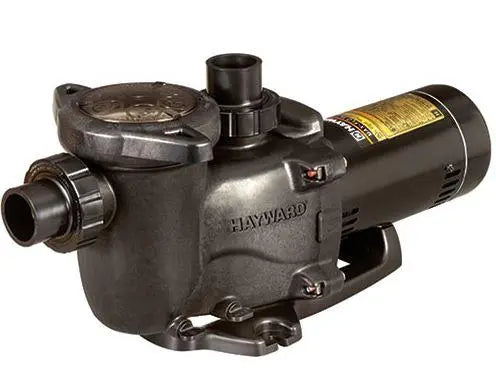

Hayward MaxFlo XL 1.0 Horsepower Single Speed 115/230 Volts Pool Pump W3SP2307X10 (also known as SP2307X10) provides advanced hydraulics and the latest conveniences such as 1 1/2" x 2" union connections while delivering incredible economy and performance for both new pool and aftermarket installations. Hayward MaxFlo XL Pumps deliver performance and reliability for in-ground pools. Silent operation makes this pump a favorite and advanced hydraulics improve efficiency to keep water moving throughout your pool's equipment system effectively and increases priming ability.
Features :
- Quick and easy installation and servicing with 1.5” x 2” union connections, providing optimum efficiency for small to medium pools
- Aligns with the original MaxFlo pump for seamless retrofit installations
- Advanced hydraulics for increased efficiency and priming ability
- Extra leaf-holding capacity basket extends time between cleanings
- Elevated base ensures better ventilation for cooler running and protection from flooding
Specifications :
| Manufacturer |
Hayward |
| Brand |
MaxFlo XL™ |
| Item |
Pool Pump |
| Type |
Medium Head |
| Voltage Rating |
115/208-230 V |
| Amperage Rating |
15 A |
| Service Factor |
1.25 |
| HP |
1 |
| Thrust Horsepower |
1.25 |
| Motor Speed |
1-Speed |
| Motor Rating |
Max-Rated |
| Connection Size |
1-1/2 Inch x 2 Inch |
| Dimension A |
14-1/4 Inch |
