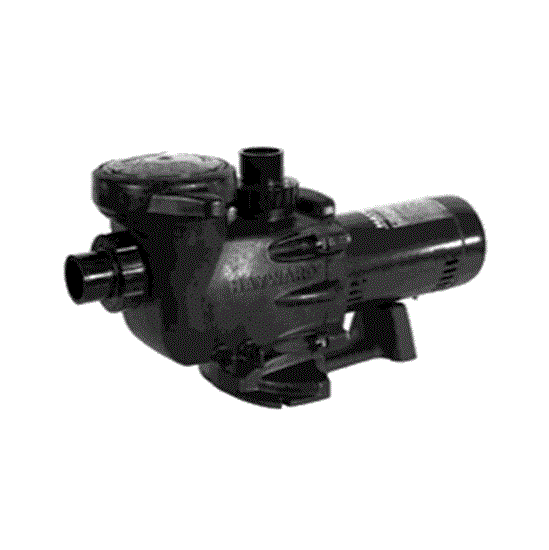

Hayward 3/4 HP Max-Flo Pump (Max Rated) High Performance Pump Series.
Hayward Max-Flo combines maximum performance with durable, corrosion-proof materials. MaxFlo Pumps are an exceptional value. The swing-aside hand knobs and large strainer basket make MaxFlo the ideal choice for both new pool and aftermarket installations. When you're looking for both economy and performance, specify MaxFlo.
Application
Features:
- Heavy-duty, high performance motor for quieter, cooler operation.
- Self-priming (suction lift up to 8' above water level)
- Exclusive swing-aside hand knobs make strainer cover removal easy.
- Lexan see-thru strainer cover lets you see when basket needs cleaning.
- Strainer basket incorporates an integral non-corrosive handle. Load extender ribbing ensures free flowing operation.
- All components molded of corrosion proof PermaGlas XL for extra durability and long life.
- Service-ease design gives simple access to all internal parts.
Max Rated Single Speed:
- Model Number: SP2805X7, H.P.: 3/4, Voltage: 115/230, Pipe Size: 1 1/2", Dim. "A": 10 5/8", Ctn. Qty.: 1, Ctn. Weight: 30 lbs.
- Model Number: SP2807X10, H.P.: 1, Voltage: 115/230, Pipe Size: 1 1/2", Dim. "A": 11", Ctn. Qty.: 1, Ctn. Weight: 33 lbs.
- Model Number: SP2810X15, H.P.: 1 1/2, Voltage: 115/230, Pipe Size: 1 1/2", Dim. "A": 12 1/8", Ctn. Qty.: 1, Ctn. Weight: 38 lbs.
- Model Number: SP2815X20, H.P.: 2, Voltage: 115/230, Pipe Size: 1 1/2", Dim. "A": 13 1/8", Ctn. Qty.: 1, Ctn. Weight: 44 lbs.
Performance Data:
- SP2805X7 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft - 64, 30 ft - 57, 40 ft - 46, 50 ft - 31
- SP2807X10 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft - 82, 30 ft - 75, 40 ft - 63, 50 ft - 50, 60 ft - 27
- SP2810X15 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft - 94, 30 ft - 87, 40 ft - 77, 50 ft - 67, 60 ft - 50, 70 ft - 10
- SP2815X20 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft - 107, 30 ft - 105, 40 ft - 95, 50 ft - 85, 60 ft - 70, 70 ft - 51
1 Year Warranty on Strainer Housing
1 Year Warranty on Motor
