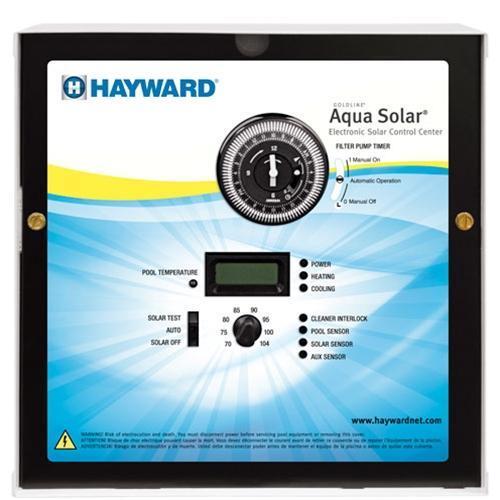

The Hayward AquaSolar Digital Solar Controller with Built-In Time Clock allows you to control your solar system to optimize your existing solar setup. The AquaSolar system is part of Hayward’s cutting edge control system and features many advanced features. The AquaSolar controller has a dual digital display of pool water and solar collector temperatures, a full system diagnostic LEDs and customizable features.
The Hayward AquaSolar Digital Solar Control Systems are offered in three different models - AQ-SOL-LV, AQ-SOL-LV-TC and AQ-SOL-LV-SP. The three different models provide differential temperature control with an adjustable calibrated water temperature high limit. They all offer a built-in digital display for solar, water and ambient temperature information as well as programmable set point temperature controls.
This is the controller unit only and will not include any valves, actuators, sensors, or solar panels. This item is a replacement Control Center only. This will include 1 Relay.
Application:
In-Ground Pools with Solar Heating
Features:
- Wires as both 120VAC or 240VAC
- Automation that helps maximize your solar heat collection
- Easy-to-read LED indicators showing system status
- Built-In time clock to run pool equipment
- Includes 1 relay for equipment, max relay is 2
- Programmable in 15-minute increments
- Multiple On-Off settings
- Freeze protection option if temperature nears 32°F
- Locking, weatherproof enclosure
- Installer-programmable features for system adaptability
- NSF, UL and CUL approved
5 Year Limited Warranty
