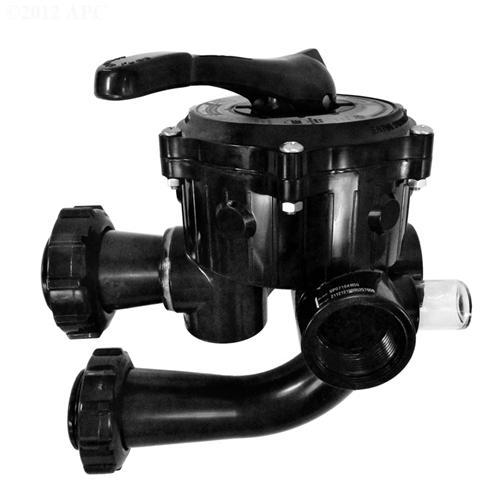

Hayward Vari-Flo Valve 2" SP0715XR50 is a unique six-position filter control valve, combining outstanding hydraulic and mechanical characteristics and piping versatility with rugged, modern materials. Completely corrosion-free, and molded in the luxurious finish, the Vari-Flo is an efficient, positive sealing control valve for all filtration applications.

6 Position 2" FIP, Side mount fits - Hayward side-mount pool filter models (Hayward Pro-grid DE filter)

Features:

• Six position sealing and positive indexing positions: Filter, Backwash, Waste, Rinse, Closed and Re-circulate.
• Unparallel piping versatility for all filter styles. Standard outlets, as illustrated, plus 3 additional piping variations from filter influent ports.
• Totally non-corrosive construction: Rugged heavy-duty ABS body and cover- abrasion-resistant Noryl valve disc key.
• Water pressure from pump assures constant and uniform seal in all positions
• Unique design assures exceptionally low-pressure drop, resulting in more efficient filtration and equivalent pump horsepower.
• Automatic self-cleaning design prevents clogging or sticking. By depressing handle, the valve disc key is lifted off the valve seat gasket, allowing the gasket to be flushed clean.
• Precision-engineered seals - Dual O-ring/Teflon shaft seal, molded Neoprene valve seat, and high-pressure o-ring cover seal.
• Easy to operate lever-action handle rotates on a non-stop metallic bearing.
