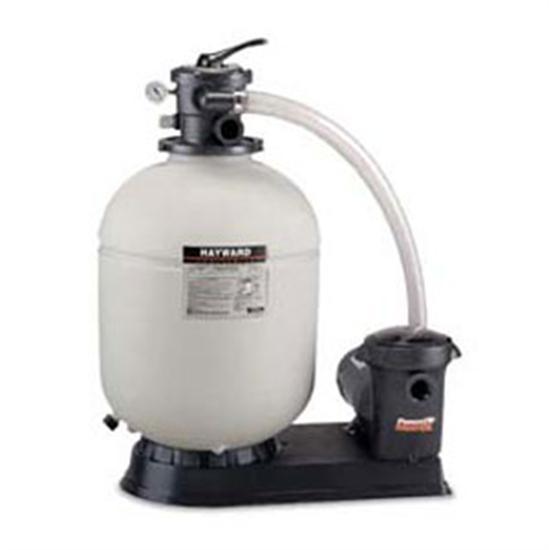

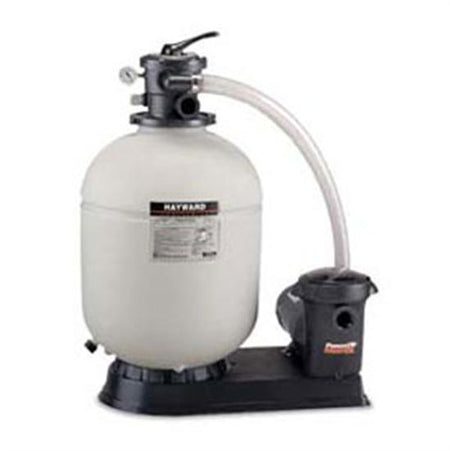

Hayward 16" Above-ground Filter & Pump Package 1 HP Power-Flo Matrix Pump. Pro Series sand systems are designed and equipped to offer the ideal combination of energy efficiency and outstanding water clarity. A broad selection of filter sizes, pumps, and accessories allows you to choose and merchandise the system(s) that best suit your above-ground pool program.
Application
Features:
- Pumps and filters are performance-matched to provide maximum flow and energy efficiency
- Filter bases are molded of rugged ABS for long lasting, all-weather performance
- 7 position PermaGlass XL™ Vari-Flo™ valve provides maximum flow at low pressure drop
- All models are one carton systems and UPS shippable up to the 16" systems
- Optional microprocessor pump timer available
- Systems are designed for quick assembly and precise alignment of components
Pro Series Filter System
- Model No: S144T1540S, Filter Control Valve: SP0704, Pump: Power-Flo, H.P.: 40 GPM, System Components: 3, Ctn.Qty: 1, Ctn.Weight: 44 lbs.
- Model No: S166T92S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 52 lbs.
- Model No: S166T92STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 52 lbs.
- Model No: S180T92, Filter Control Valve: SP0704, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,4, Ctn.Qty: 1, Ctn.Weight: 62 lbs.
- Model No: S180T92S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 65 lbs.
- Model No: S180T92STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 65 lbs.
- Model No: S180T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 66 lbs.
- Model No: S180T93STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 1,2,3,4, Ctn.Qty: 1, Ctn.Weight: 66 lbs.
- Model No: S210T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
- Model No: S210T93STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 1,2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
- Model No: S230T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
FILTER CONTROL VALVES: 7-position Vari-Flo control valves (SP0714T) come complete with integral sight glass and pressure gauge.
System Components
- 3" twist lock cord (UL)
- Power-Flo Matrix pump
- 1 1/2" hose packages include: two (2) 1 1/2" x 6' lengths of hose, hose adapters and hose clamps
- Deluxe one piece base accepts automatic chlorine feeders (CL110ABG/CL220ABG)
1 year limited warranty
Use only High Rate Sand No. 1/2 Silica Sand (.45mm - .55mm)
