Description

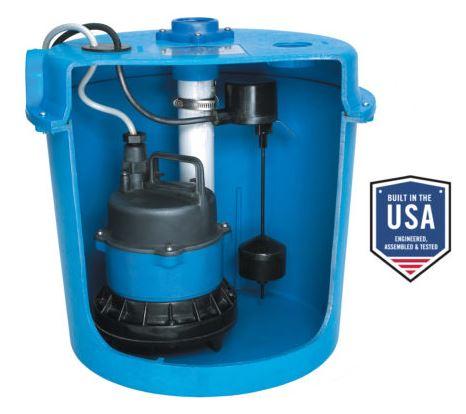

Goulds SDS1 4/10 Horsepower 115V 1 Phase Sink Drain System is a sink drain package specifically designed for the following uses: Laundry tray, Wet bar sink, Air conditioning condensate or Dehumidifier water, Residential dishwashers or Beautician sink.
Features:
- Fully Assembled – Individually Cartoned.
- Capable of Running Dry without Damage to Components.
- Severe Duty Rated Oil and Water Resistant Power Cable.
Specifications:
- 0.4 HP, 115 V, 1 PH, 1550 RPM, with 10' cord
- Maximum Amps: 12. • ¾" maximum solids handling.
- Capacities: up to 55 GPM.
- Total heads: up to 24 feet.
- Built in overload with automatic reset.
Assembled Components:
- EP0411, 0.4 HP, ¾" solids handling pump is CSA listed.
- CSA listed pump A2H11 Vertimaster vertical level switch with 10 foot cord and piggyback plug is UL and CSA listed.
- 10 gallon structural foam basin and cover.
- 1½" NPT threaded vent, discharge and inlet connections.
- 1½" schedule 40 PVC discharge pipe (internal).
