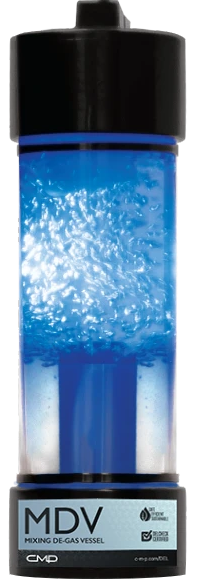

Del Ozone Mixing Degas Vessel - MDV-10-08
The Del Ozone Mixing Degas Vessel - MDV-10-08 will effectively separate ozone bubbles from the ozonated water produced by the Solar Eclipse. When the flow enters the mixing vessel, the ozone bubbles are allowed to float up and accumulate at the top as the water exits out the bottom. The separated ozone passes through a float valve and is sent through a carbon destruct and neutralized to safely vent to the atmosphere.
The MDV-10-08 should be used in all indoor, covered, and vinyl lined pools where there is a Solar Eclipse installed. It can also be used in outdoor applications to eliminate bubbles in your return flow.
- MDV tower
- AOP 25 Installation Kit
- Carbon destruct cartridge
- Ozone tubing and check valve
- Venturi injector
- Pressure differential check valve
- Installation instructions
- Mounting hardware
Recommended for the following Ozonators:
- Del Ozone AOP 25
