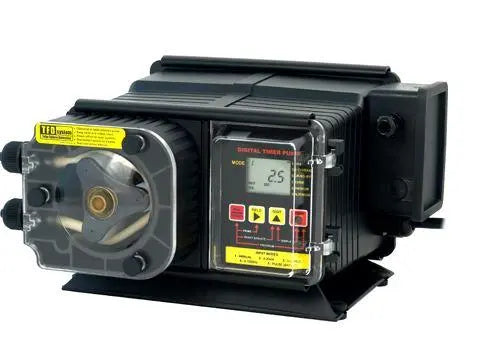

Blue White FlexFlo A100N Metering Feeder Pump 115V 3-8" OD 6.8 GPD Compression Nuts - A1N00A-6T

Blue White FlexFlo A100N Metering Feeder Pump 115V 3-8" OD 6.8 GPD Compression Nuts - A1N00A-6T

by Blue White
SKU BWA1N00A6T
Availability:
in stock, ready to be shipped
Save 25% Save 25%
$609.99
$609.99 - $609.99
$609.99
$456.30
$456.30 - $456.30
$456.30

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

Blue White FlexFlo A100N Metering Feeder Pump 115V 3-8" OD 6.8 GPD Compression Nuts - A1N00A-6T has self priming. It includes standard solid state output adjustments. Its output pressures up to 100 PSI.

Features:

  • Peristaltic pump design does not have valves that can clog requiring maintenance.
  • Adjustable 60 sec repeating interval timer.
  • 3-60 sec adjustable on time per 60 sec cycle.
  • Built-in Tube Failure Detection system (TFD).
  • Senses chemical in the pump head, shuts off the pump and activates an NPN open collector output.
  • Compatible with blue-white output flow verification sensor system.
  • Durable housing of chemical resistant Valox (PBT) thermoplastic.
  • Neoprene tube.
  • Analog timer 60 sec with 100% duty cycle.
  • Natural polypropylene suction strainer.
  • Natural polyethylene discharge tubing.
  • Self priming - even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime.
  • Clear PVC pump head cover.
  • Compression tube nut connection.
  • 5000 centipose viscosity.
  • Outputs to 250 ml/min (95.1 gpd).
  • Output pressures to 100 psi.
  • Output volume is not effected by changes in back pressure.
  • Patented pump tube design installs easily and stays centered on the rollers without manual adjustment.
  • Two pump tubes supplied with each pump and extra tubing is not required.
  • Easy to use dial knob output control.
  • 20:1 turn down ratio.

Specifications:

  • Brand: Blue White Industries
  • Sub Brand: Flexflo
  • Item: Peristaltic Metering Pump with Analog Timer
  • Suction Size: 3/8 Inch OD
  • Dimension: 6-1/4 Inch H x 10 Inch W x 9-1/4 Inch D
  • Amperage Rating: 1.37 A
  • Cord Type: 3 Conductor, SJTW-A, NEMA 5/15
  • Application: For water treatment and conditioning, proportional chemical injection, wastewater treatment, biocide feed, rural water systems, cooling tower and boiler treatment, fertilizer and nutrient injection, pool chlorination and pH control
  • Flow Rate: 6.8 gpd
  • For Use With: Chemical Feeders
  • Frequency Rating: 60 Hz
  • Housing Material: Polypropylene
  • Maximum Suction Lift: 30 ft. Water at 0 psi
  • Motor RPM: 14
  • Operating Temperature: 130 deg. F
  • Pressure Rating: 100 psi
  • Series: A-100N
  • Standards Approvals: ETL Listed, CE, NSF Certified
  • Voltage Rating: 115 V
