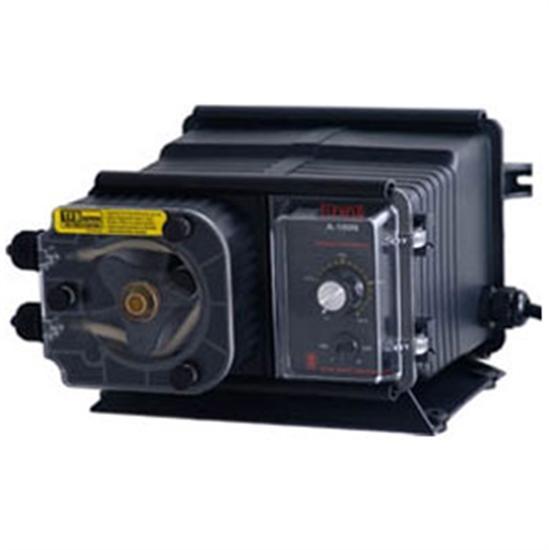

Blue White Commercial Chemical Feeder A-100 Peristaltic Pump 115V - A-145-6
Blue White Commercial Chemical Feeder A-100 Peristaltic Pump is self priming, even against line pressure. The de-gassing design eliminates gas or air accumulation in the head. Has Outputs to 95.1 GPD and pressure to 100 psi. The TFD (Tube Failure Detection) System is breakthrough technology for Peristaltic Style Chemical Metering Injector Pumps. The TFD System will detect a wide range of chemicals and this exclusive technology was designed to disregard compatible fluids. If a non compatible fluid is detected, the injector pump will automatically shut off and energize a relay or switch, permitting communication with external equipment, such as a back-up pump or alarm. Blue-White is the first peristaltic chemical metering injector pump manufacturer to add this kind of safety feature to its injectors. The TFD System is an exclusive, Patented Product offered only by Blue-White. Specs: 45 RPM, 115V/ 60HZ, Analog timer, 60 sec. cycle. Pump tube sizing is 7/16" OD Norprene, Compression tube nuts and dial knob output control.
Application
Features:
- The TFD System will detect a wide range of chemicals
- 45 Rpm
- Analog timer
- 115V
- 60 HZ
- 7/16" OD Norprene tubing
- Durable housing of chemical resistant Valox (PBT)
- Precise feed adjustment by means of a dial type output control
