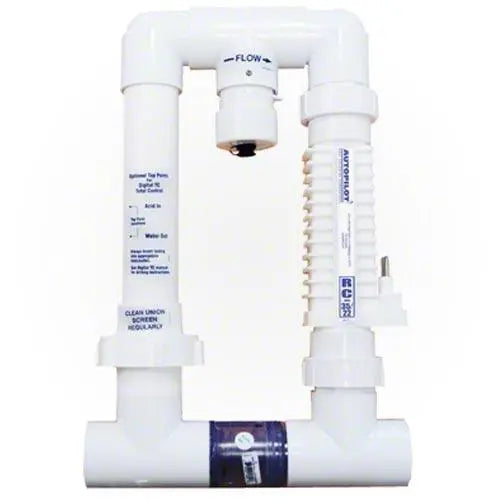

AutoPilot's Digital Manifold, designed to control flow rate to the cell, a pre-assembled unit includes four basic parts: The spring check valve, In-line strainer, Tri-Sensor, and Chlorine Production Cell. This patented bypass manifold provides optimal chlorine production and simplifies the installation process of the AutoPilot Purfing System.
Features:
- RC-35 Cell for Pool Pilot Digital Salt Chlorine Generators
- For pools up to 35,000 gallons
- Operates at any water temperature up to 104 degrees Fahrenheit
- Operates at all salt levels: 2,000-35,000 ppm
- Formally known as part number 94105
Includes:
- In-line Strainer - The in-line strainer protects the Tri-Sensor and the Cell from debris that may by-pass the filter and obstruct either component, designed to be cleaned easy.
- Tri-Sensor - The Tri-Sensor is a three way sensing device which measures flow, salt level, and water temperature.
- Chlorine Production Cell - The cell produces 100% pure Sodium Hypochlorite in your pool plumbing returning it to your pool.
- Check Valve - The check valve in the Manifold allows all water flowing through the plumbing, over 20 gpm, to by-pass the production cell to maximize the production of chlorine, the water flows through the cell to get chlorinated
