Astral 79" Commercial Sand Filter

»» Description:

Astral 79" Commercial Sand Filter

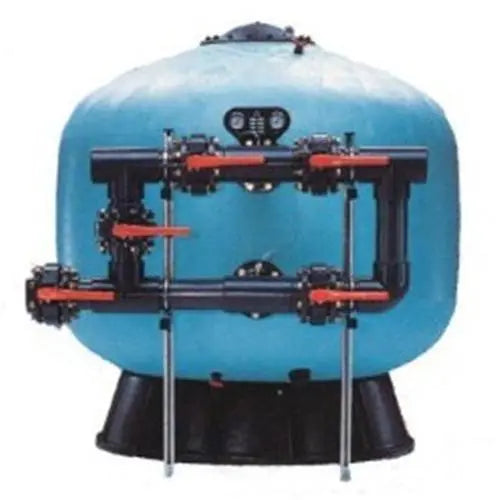

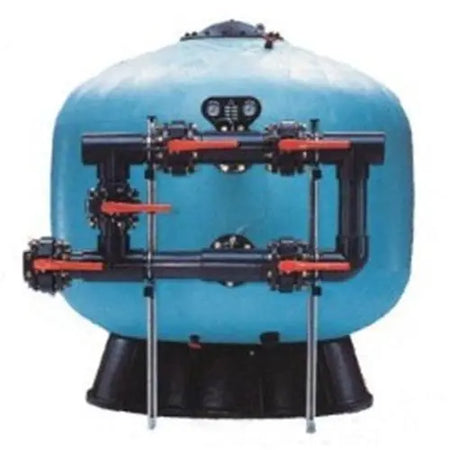

The 06634 Astral 79” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 79” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 79” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.

Specifications:

Filter Diameter: 79”

Filtration Area: 33.8 Sq Ft

Max Flow Rate: 676 GPM

Volume: 1,162 gallons

Connections: 6”

Sand Required: 8,400 lbs

Gravel Required: 2,550 lbs

Empty Weight: 915 lbs

»» Application:

Commercial Pool Installations

»» Features:

Increased Flow Capacity

Advanced Filter Design

Valve Sold Separately

NSF Listed

Large Media Drain Port

Dual Pressure Gauge

16" Manhole

Manual Air and Water Purge
