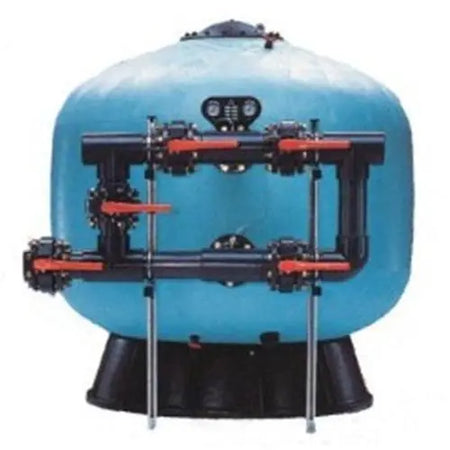

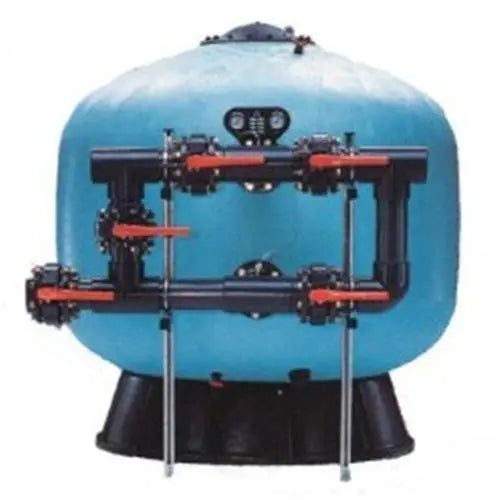

Astral 63" Commercial Sand Filter

»» Description:

Astral 63" Commercial Sand Filter

The 06632 Astral 63” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. Each of these filters is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.

Specifications:

Filter Diameter: 63”

Filtration Area: 21.64 Sq Ft

Max Flow Rate: 432 GPM

Volume: 637 gallons

Connections: 4”

Sand Required: 5,400 lbs

Gravel Required: 1,650 lbs

Empty Weight: 786 lbs

»» Application:

Commercial Pool Installations

»» Features:

Increased Flow Capacity

Advanced Filter Design

Valve Sold Separately

NSF Listed

Large Media Drain Port

Dual Pressure Gauge

16" Manhole

Manual Air and Water Purge
