Astral 47" Commercial Sand Filter

»» Description:

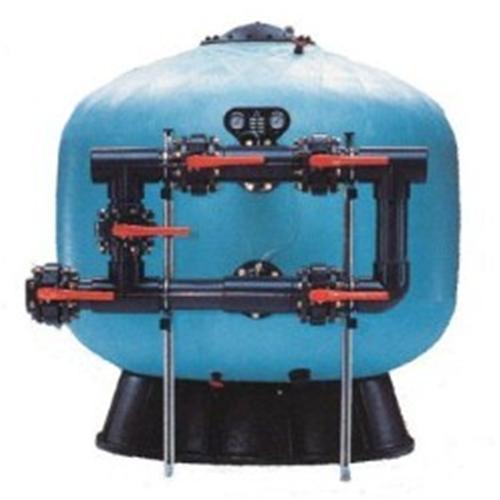

Astral 47" Commercial Sand Filter

The 06680 Astral 47” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 47” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 47” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.

Specifications:

Filter Diameter: 47”

Filtration Area: 12.16 Sq Ft

Max Flow Rate: 243 GPM

Volume: 396 gallons

Connections: 3”

Sand Required: 3,050 lbs

Gravel Required: 650 lbs

Empty Weight: 502 lbs

»» Application:

Commercial Pool Installations

»» Features:

Increased Flow Capacity

Advanced Filter Design

Valve Sold Separately

NSF Listed

Large Media Drain Port

Dual Pressure Gauge

16" Manhole

Manual Air and Water Purge
