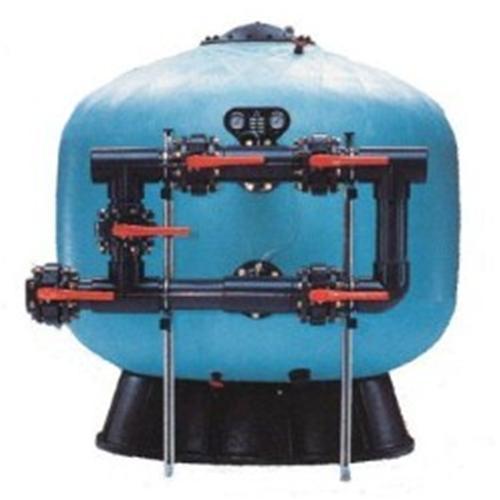

Astral 42" Commercial Sand Filter
The 06682 Astral 42” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 42” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 42” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.
Specifications:
- Filter Diameter: 42”
- Filtration Area: 9.26 Sq Ft
- Max Flow Rate: 185 GPM
- Volume: 277 gallons
- Connections: 3”
- Sand Required: 2,300 lbs
- Gravel Required: 650 lbs
- Empty Weight: 330 lbs
Application:
Commercial Pool Installations
Features:
- Increased Flow Capacity
- Advanced Filter Design
- Valve Sold Separately
- NSF Listed
- Large Media Drain Port
- Dual Pressure Gauge
- 16" Manhole
- Manual Air and Water Purge
