Description

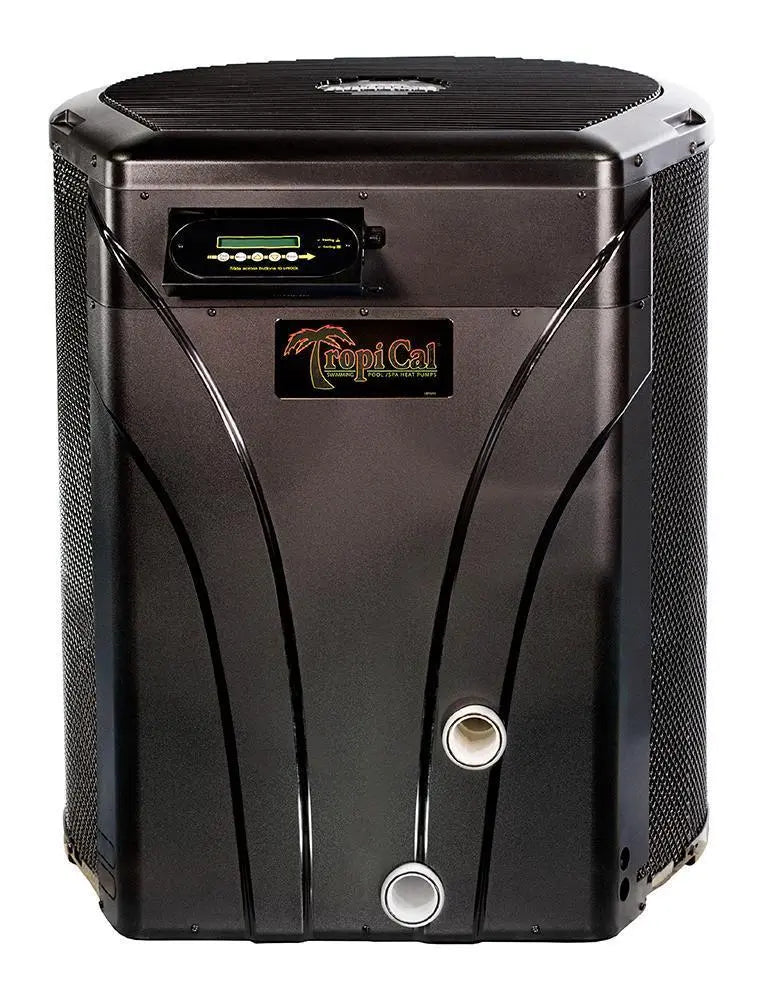

AquaCal TropiCal Heat Pump 96K BTU - Model: T90
Get the most out of your pool heating investment!
- High performance titanium heat exchanger (Patented ThermoLink® in the T90, T115 and T135 models)
- Microprocessor controlled defrost cycle allows operation down to mid to low 40s °
- Built-in drain pan for condensate management
- Impact resistant, rust and fade proof cabinet
- Quieter than conventional heat pumps
- NEW Smart Microprocessor Control with LCD Display
- Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
- Digital control panel with 24 character full-text display provides easy-to-read menu options and unit status
- Ability to connect to most external controllers
- Hybrid functionality can initiate a gas heater when an extra boost of heat is needed
Specifications:
| BTUs | T90 |
|---|---|
| 80/80/80 | 96,000 |
| 80/80/63 | 90,000 |
| 80/50/63 | 65,000 |
| Coefficient of Performance | |
| 80/80/80 | 6.0 |
| 80/80/63 | 5.8 |
| 80/50/63 | 4.2 |
| Refrigerant | R410A |
| Heat Exchanger | ThermoLink® |
| Electrical | |
| KW Input | 4.7 |
| Voltage/Hz/Phase | 208-230/60/1 |
| Minimum Circuit Ampacity | 40.2 |
| Maximum Fuse Size | 60 |
| *Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phase. Strongly recommended for all spa applications. | |
| Water Flow | |
| Minimum/Maximum (gpm) | 30/70 |
| *A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135. | |
| Physical | |
| Weight (lbs) | 255 |
| Size (LxWxH) | 34″ x 34″ x 39″ |
| Shipping | |
| Weight (lbs) | 305 |
| Size (LxWxH) | 38″ x 36″ x 43″ |
