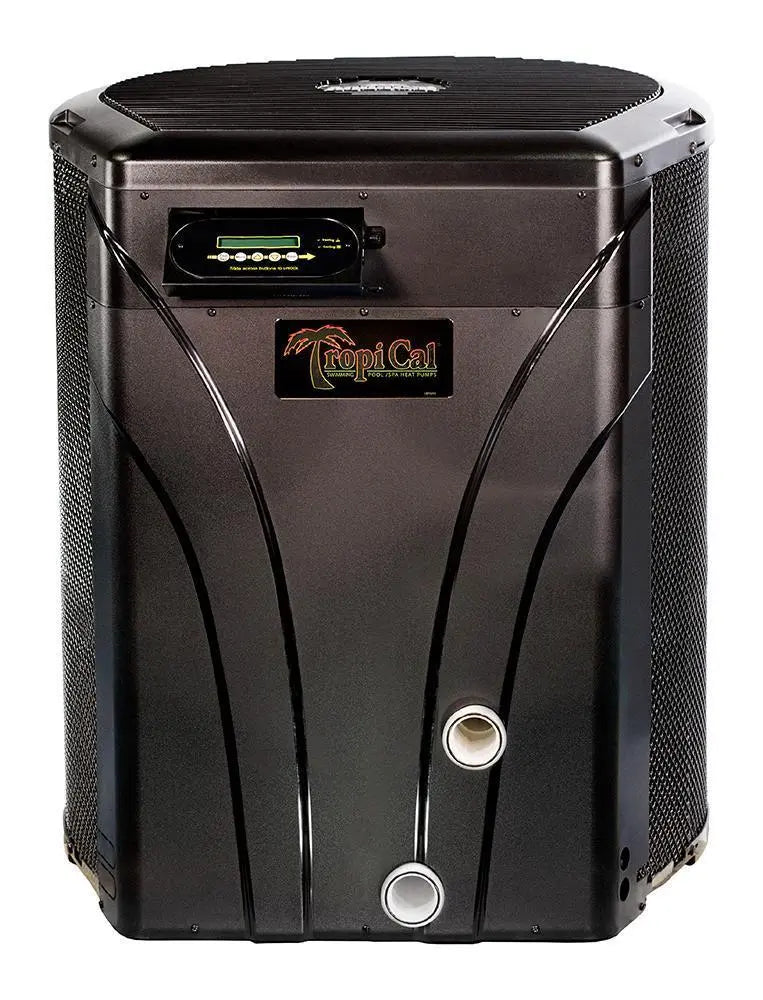

AquaCal TropiCal T75 Pool Heat Pump - 72,000 BTU - T75

Features:

Get the most out of your pool heating investment!

• High performance titanium heat exchanger (Patented ThermoLink® in the T90, T115 and T135 models)
• Microprocessor controlled defrost cycle allows operation down to mid to low 40s °
• Built-in drain pan for condensate management
• Impact resistant, rust and fade proof cabinet
• Quieter than conventional heat pumps
• NEW Smart Microprocessor Control with LCD Display
• Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
• Digital control panel with 24 character full-text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers
• Hybrid functionality can initiate a gas heater when an extra boost of heat is needed

Specifications:

• BTUs (water temp/ambient air/relative humidity):
• 80/80/80: 74,000
• 80/80/63: 70,000
• 80/50/63: 49,000
• Coefficient of Performance (water temp/ambient air/relative humidity):
• 80/80/80: 5.6
• 80/80/63: 5.4
• 80/50/63: 4.0
• Refrigerant: R410A
• Heat Exchanger: Tube in Tube
• Electrical:
• KW Input: 3.9
• Voltage/Hz/Phase: 208-230/60/1
• Minimum Circuit Ampacity: 31.4
• Maximum Fuse Size: 50
• *Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phase. Strongly recommended for all spa applications.
• Water Flow:
• Minimum/Maximum (gpm): 20/45
• *A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135.
• Physical:
• Weight (lbs): 200
• Size (LxWxH): 34″ x 34″ x 28″
• Shipping:
• Weight (lbs): 240
• Size (LxWxH): 38″ x 36″ x 33″

Manufacturers Part Number: T75
Manufacturer: AquaCal
UPC: 690449050799

1 Year manufacturers warranty
