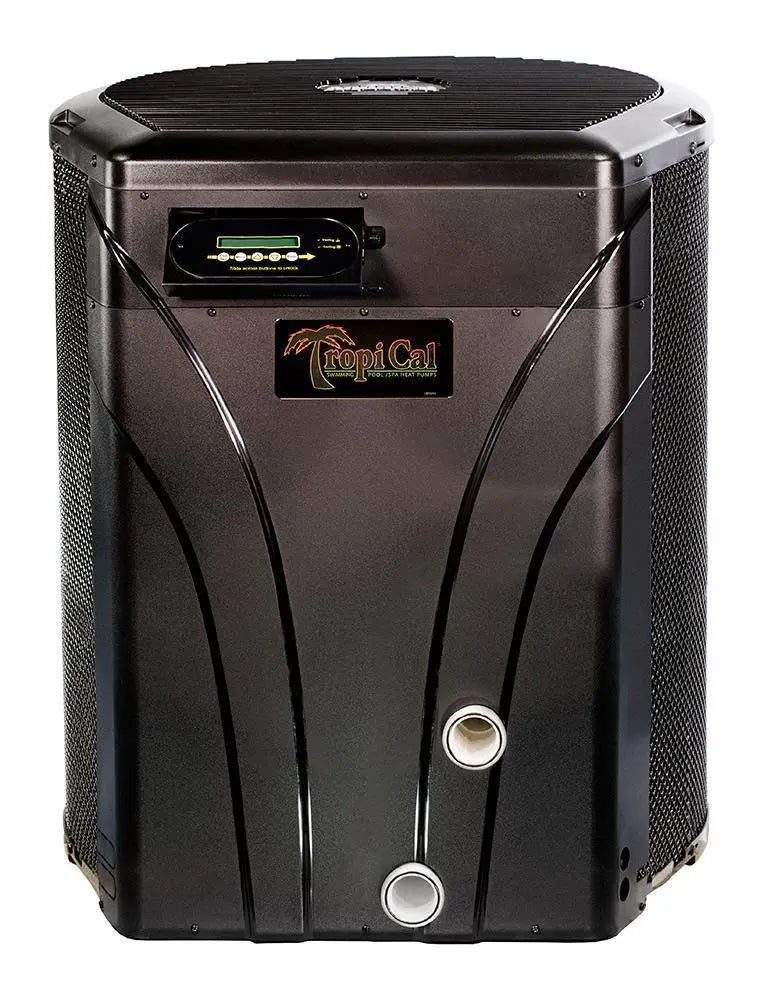

AquaCal TropiCal T35 Pool Heat Pump - 36,000 BTU - T35

Get the most out of your pool heating investment!

Features:

• High performance titanium heat exchanger (Patented ThermoLink® in the T90, T115 and T135 models)
• Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F
• Built-in drain pan for condensate management
• Impact resistant, rust and fade proof cabinet
• Quieter than conventional heat pumps
• NEW Smart Microprocessor Control with LCD Display
• Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
• Digital control panel with 24 character full-text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers
• Hybrid functionality can initiate a gas heater when an extra boost of heat is needed

Specifications:

• Efficiency
• KW Output: 10.6
• BTU Output: 36,000
• Coefficient of Performance (water temp/ambient air/relative humidity): 6.2
• KW Input: 1.7
• Electrical
• Voltage/Hz/Phase: 220-240/50/1
• Minimum Circuit Ampacity
• Maximum Fuse Size: 20
• Minimum Circuit Ampacity: 12.2
• Heat Exchanger: Tube in Tube
• Water flow
• Min./Max. water Flow (m³/h): 4.5/10.2
• Min./Max. water Flow (gpm): 20/45gpm
• Physical
• Weight (kg): 82
• Weight (lb): 180
• Length x Width x Height (cm): 92 x 64 x 72
• Length x Width x Height (in): 36″ x 25″ x 28″
• Shipping
• Weight (kg): 100
• Weight (lbs): 220
• Length x Width x Height (cm): 97 x 66 x 84
• Length x Width x Height (in): 38″ x 26″ x 33″

Manufacturers Part Number: T35
Manufacturer: AquaCal
UPC:

1 Year manufacturers warranty
