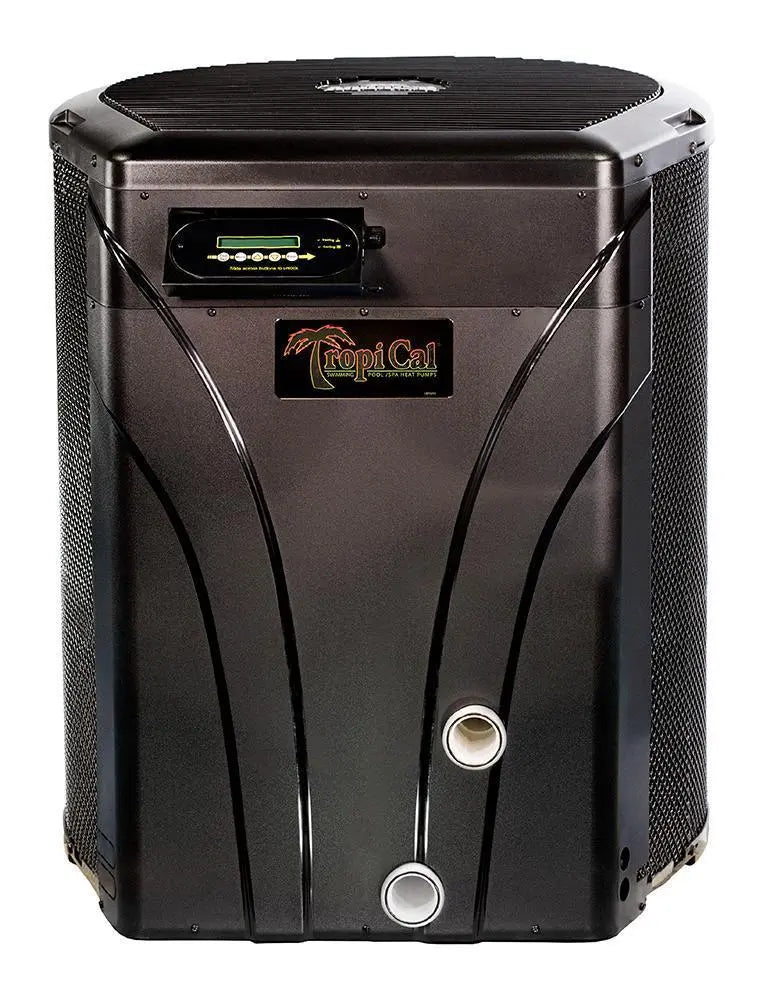

AquaCal TropiCal T135 Pool Heat Pump - 132,000 BTU - T135

Get the most out of your pool heating investment!

Features:

• High performance titanium heat exchanger (Patented ThermoLink® in the T90, T115 and T135 models)
• Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F
• Built-in drain pan for condensate management
• Impact resistant, rust and fade proof cabinet
• Quieter than conventional heat pumps
• NEW Smart Microprocessor Control with LCD Display
• Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
• Digital control panel with 24 character full-text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers
• Hybrid functionality can initiate a gas heater when an extra boost of heat is needed

Specifications:

• BTUs:
  • 80/80/80: 132,000
  • 80/80/63: 125,000
  • 80/50/63: 84,000
• Coefficient of Performance:
  • 80/80/80: 5.7
  • 80/80/63: 5.6
  • 80/50/63: 4.0
• Refrigerant: R410A
• Heat Exchanger: ThermoLink®
• Electrical:
  • KW Input: 6.8
  • Voltage/Hz/Phase: 208-230/60/1
  • Minimum Circuit Ampacity: 43.3
  • Maximum Fuse Size: 60
• Note: Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phase. Strongly recommended for all spa applications.
• Water Flow:
  • Minimum/Maximum (gpm): 30/70
• Note: A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135.
• Physical:
  • Weight (lbs): 287
  • Size (LxWxH): 34″ x 34″ x 39″
• Shipping:
  • Weight (lbs): 337
  • Size (LxWxH): 38″ x 36″ x 43″

Manufacturers Part Number: T135
Manufacturer: AquaCal
UPC: 642026021579

1 Year manufacturers warranty
