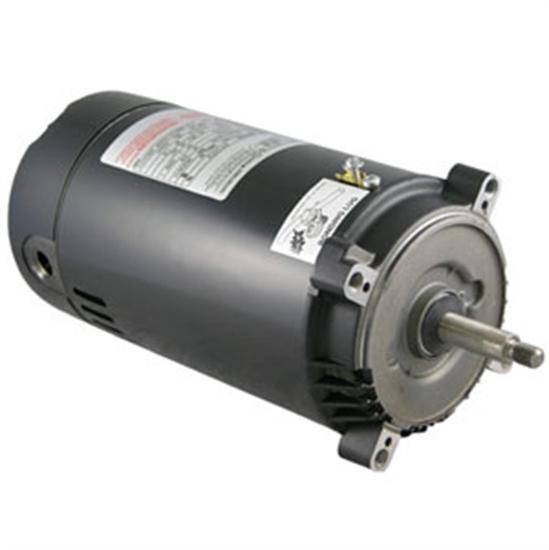

AO Smith Century Centurion Series 2 HP Frame Motor C-Face - ST1202
This is the first full line of upgraded pool motors... the "best of the best" from Century.
- Centurion Series Conservationist Energy Efficient Motor
- No-adjust start switch that is rated for over one million cycles for motor longevity
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
- Heavy-duty shaft made from 303-grade stainless steel helps prevent corrosion
- EZ wrench access that doesn't require the removal of the wiring compartment canopy
- Angled terminal makes wiring connections a breeze
- Patented voltage change dial for easy voltage selection
- Patented bonding lug for easy ground connections
- Patented bearing lock clip for assured bearing retention
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
- Horsepower: 2 HP
- Service Factor: 1.3
- Total Horsepower: 2.6 HP
- Volts: 208-230
- Amps: 12.6/11.4
- RPM: 3450
- Frame: 56J
- Flange: C-Face
- Shaft: Threaded
- Series: Centurion Conservationist Energy Efficient
- Full Rated
Compatible for use with the following pumps:
- Hayward Super II
- Hayward Northstar Full Rate
- Jacuzzi Magnum
