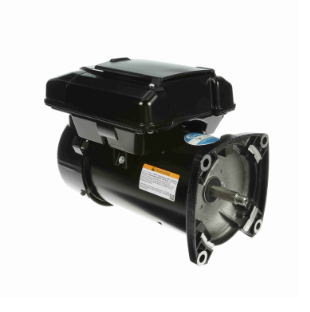

AO Smith Century V Green 165 1.65 HP 230V Variable Speed Motor - ECM16SQU

in stock, ready to be shipped
Original price $490.50 - Original price $490.50
Original price
$490.50 - $490.50
Current price $490.50

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

AO Smith Century V Green 165 1.65 Horsepower 230V Variable Speed Motor ECM16SQU is a premium efficiency variable speed motor that delivers premium energy efficiency of over 80 percent versus a standard single-speed motor.

The V-Green 165 offers three variable speeds programmable from 600 to 3450 rpm, allow you to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool ownership all while maintaining the proper pool environment.  Pool size, the presence of additional water features, chemical maintenance needs, the environmental factors will impact the equation whichever pool having unique requirements.  The programming flexibility offered by the V-Green 165 makes it possible for you to easily identify and adjust the speed and duration settings necessary to maintain your pool and to maximize energy savings.

Installation on most pumps regardless of manufacturer is as simple as replacing a standard single-speed motor, with no additional wiring or plumbing required thanks to the motor's integrated user interface.  Equipped with digital inputs, the V-Green 165 motor is even compatible with third party pool automation systems.


  • Replacement Variable Speed Motor
  • Built-in control panel to set speeds, timer, etc.
  • TEFC Construction and UV/Rain-proof enclosure
  • Compatible with third party pool automation systems
  • Energy efficiency of 80% over standard single speed motors
  • Motor can be set at any speed from 600 to 3450 rpm with three saved presets
  • Reduced noise emissions from the motor and meets FCC Part 15, Class B
  • Manual override capabilities with no need to adjust programmed settings.
  • Freeze protection


  • Horsepower:  1/2 to 1.65 HP
  • Total Horsepower:  1.65 HP
  • Speed:  Variable speed from 600 to 3450 RPM
  • Service Factor:  1.0
  • Volts:  208-230
  • Max Amps:  10.5-10.0
  • RPM:  600 to 3450
  • Frame:  48Y
  • Flange:  Square Flange
  • Shaft:  Threaded
  • Series:  V-Green
  • Remote Controller:  Optional - Century VLink Controller(VL100)

Compatible for use with the following pumps:

  • Pentair IntelliFlo I1
  • Sta-Rite IntelliPro
  • Jandy Stealth (SHPF)
  • Pentair WhisperFlo Pumps
  • Sta-Rite Max-E-Pro Pumps
  • Hayward Tristar Pumps
