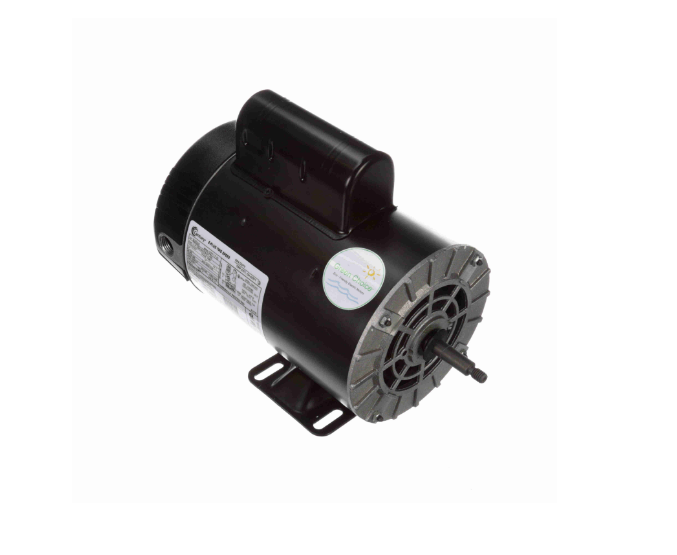

AO Smith Century 56 Frame 3 HP Spa Motor - B2234
AO Smith Century 56 Frame 3 HP Spa Motor - B2234 combines the proven performance of the Century Centurion 56 frame platform with the next generation of features for increased reliability, added performance, premium efficiency and serviceability.
- Century 56 Frame Energy Efficient Spa Motor
- E-Plus New Centurion Design
- No-adjust start switch that is rated for over one million cycles for motor longevity
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
- Heavy-duty shaft made from 303-grade stainless steel helps prevent corrosion
- EZ wrench access that doesn't require the removal of the wiring compartment canopy
- Angled terminal makes wiring connections a breeze
- Patented voltage change dial for easy voltage selection
- Patented bonding lug for easy ground connections
- Patented bearing lock clip for assured bearing retention
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
- 3/8-16 UNC-2A Threads Includes Slinger
- PSC on High Speed
- Horsepower: 3
- Speeds: 2 Speed (Low and High)
- Volts: 230
- Amps: 1.8/10.0
- RPM: 3450 High Speed and 1725 Low Speed
- Frame: 56
- Series: Centurion Energy Efficient
- Thru Bolts: Four on a 5.812 Bolt Circle
Compatible for use with the following pumps:
- Waterway Spa Pumps
