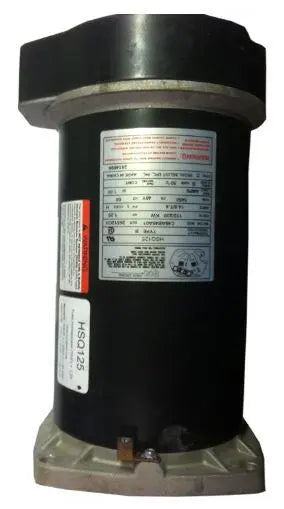

AO Smith Century 1.25 HP 115/230V Motor - HSQ125

The AO Smith Century 1.25 HP 115/230V Motor HSQ125 is a Professional-grade with a Hybrid end frame design: The hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access.

With a PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand and tool-friendly.

It features a Voltage change device: This incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b.

Created with a Definitive shaft access: The design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.

Features:

• Professional-grade
• Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
• PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
• Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates miswiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
• Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
• 203 Bearings both ends

Specifications:

• Brand: Regal Beloit/A.O. Smith
• Item: Pool and Spa Pump Motor
• Type: C
• Frame: 48Y
• Flange Type: Square
• HP: 1.25 Horsepower
• Finish Color: Satin Black
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Diameter: 5-5/8 Inch
• Duty Cycle: Continuous
• Enclosure Design: Open Drip-proof
• Frequency Rating: 60 Hz
• Full Load Amps: 14.8/7.4 A
• Insulation Class: F
• Motor Design: Capacitor Start
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Number of Speed: 1-Speed
• Overall Length: 12.03 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.00
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Thrust Horsepower: 1.25
• Voltage Rating: 115/230 V

---
