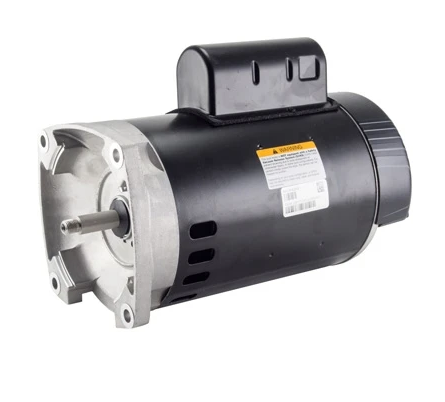

AO Smith Century Centurion 1081 Series 2.5 HP 56Y Frame Motor - B2840 combine the proven performance of the Century Centurion 56 frame platform with the next generation of features for increased reliability, added performance, premium efficiency and serviceability.
- Centurion "1081" Series Energy Efficient Motor
- No-adjust start switch that is rated for over one million cycles for motor longevity
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
- Heavy duty shaft made from 303 grade stainless steel helps prevent corrosion
- EZ wrench access that doesn't require the removal of the wiring compartment canopy
- Angled terminal makes wiring connections a breeze
- Patented voltage change dial for easy voltage selection
- Patented bonding lug for easy ground connections
- Patented bearing lock clip for for assured bearing retention
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
- Horsepower: 2.5
- Service Factor: 1.04
- Total Horsepower: 2.6
- Volts: 230
- Amps: 11.5
- RPM: 3450
- Frame: 56Y
- Flange: Square Flange
- Shaft: Threaded
- Series: Centurion Energy Efficient
Compatible for use with the following pumps:
- Max-E-Glas II
- Dura-Glas II
- Anthony AR2 Series
