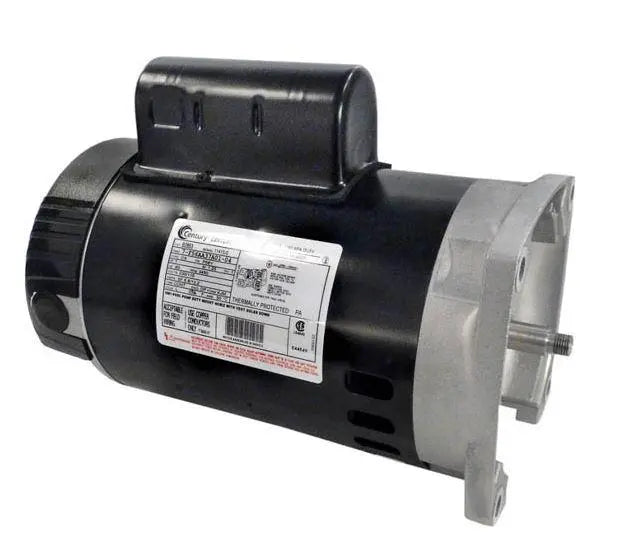

AO Smith Centurion 1081 Square Flange Up Rated Motor 1 HP - B2853

Save 21%
Original price $209.99
Current price $166.00
SKU B2853

AO Smith Centurion 1081 Square Flange Up Rated Motor 1 Horsepower replaces the American Products Power Pump, Purex Aquatron, Sta-Rite Dura Glas, Triton Challenger pump.

Features:

  • Switchless
  • Low service factor
  • Energy efficient
  • 1/2-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature :  50 deg C
  • Bearing Type :  Ball
  • Diameter :  6-1/2 Inch
  • Duty Cycle :  Continuous
  • Efficiency Group :  Standard
  • Enclosure Design :  Open Drip proof
  • Flange Material :  Aluminum
  • Frame :  56J
  • Frequency Rating :  60 Hz
  • Full Load Amps :  13.2/6.6 A
  • HP :  1
  • Insulation Class :  B
  • Motor Design :  PSC
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  C-Face, No Base
  • Overall Length :  12.40 Inch
  • Phase :  1-Phase
  • RPM :  3450
  • Service Factor :  1.25
  • Shaft Design :  Threaded
  • Shaft Diameter :  5/8 Inch
  • Shaft Length :  7/16 Inch
  • Shaft Material :  303 Stainless Steel
  • Standards Approvals :  UL 1081 Approved, CSA Certified
  • Thrust Horsepower :  1.25
  • Voltage Rating :  115/230 V
