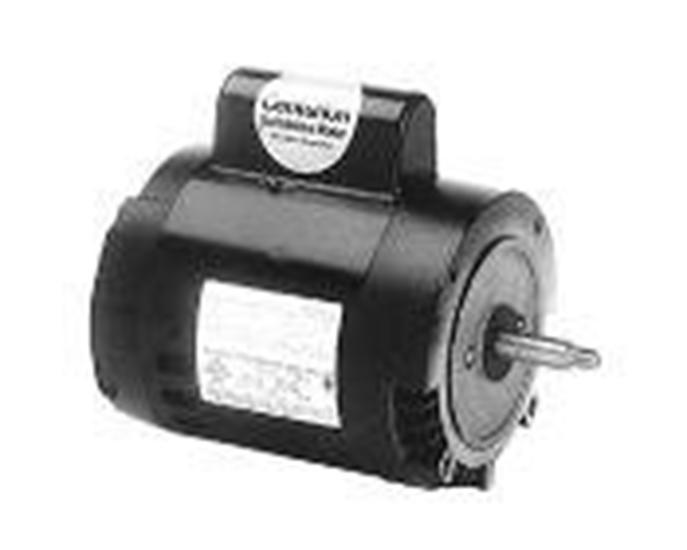

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 1 Horsepower replaces the American Products Eagle and Noryl, Hayward Super/Super II Pump, and Purex Aquatron II.
Features:
- Switchless
- High service factor
- Aluminum NEMA "C" brackets
- 7/16-20 UNF-2A RH threaded shaft
Specifications:
- Ambient Temperature : 50 deg C
- Bearing Type : Ball
- Diameter : 6-1/2 Inch
- Duty Cycle : Continuous
- Efficiency Group : Standard
- Enclosure Design : Open Drip proof
- Flange Material : Aluminum
- Frame : 56J
- Frequency Rating : 60 Hz
- Full Load Amps : 7.2/14.4 A
- HP : 1
- Insulation Class : B
- Motor Design : PSC
- Motor Shaft Rotation : CCWPE
- Motor Thermal Protection : Auto
- Mounting Type : C-Face, No Base
- Overall Length : 12.14 Inch
- Phase : 1-Phase
- RPM : 3450
- Service Factor : 1.40
- Shaft Design : Threaded
- Shaft Diameter : 5/8 Inch
- Shaft Length : 2-9/16 Inch
- Shaft Material : 303 Stainless Steel
- Standards Approvals : UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
- Thrust Horsepower : 1.4
- Voltage Rating : 115/230 V
