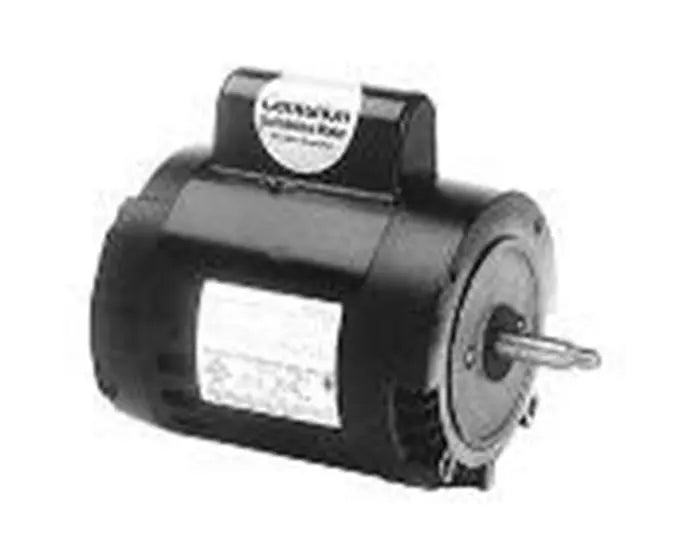

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 1.5 HP - B129

Save 15%
Original price
$269.99
Current price

$230.00

SKU B129

Product Description

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 1.5 Horsepower - B129 replaces the American Products Eagle and Noryl, Hayward Super/Super II Pump and Purex Aquatron II.

Features:

  • Switchless
  • High service factor
  • Aluminum NEMA "C" brackets
  • 7/16-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Efficiency Group: Standard
  • Enclosure Design: Open Drip proof
  • Flange Material: Aluminum
  • Frame: 56J
  • Frequency Rating: 60 Hz
  • Full Load Amps: 9.2/18.4 A
  • HP: 1.5
  • Insulation Class: B
  • Motor Design: PSC
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face, No Base
  • Overall Length: 13.50 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.30
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-9/16 Inch
  • Shaft Material: 303 Stainless Steel
  • Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
  • Thrust Horsepower: 1.95
  • Voltage Rating: 115/230 V
